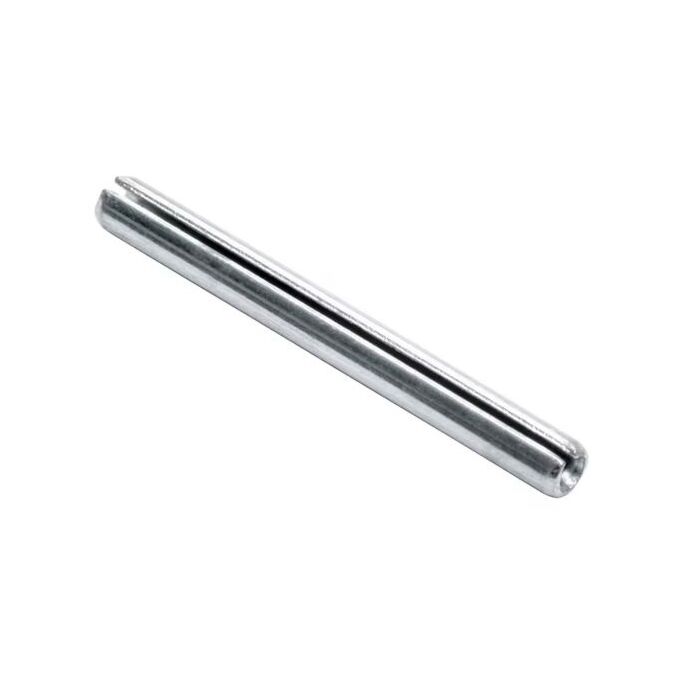

Slotted Spring Pin 5/16" x 1-3/4" 1070-1080 Carbon Steel Zinc Clear ASME B18.8.2
SKU: RP516X134
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1.09
Features
Specifications
Slotted Spring Pin 5/16" x 1-3/4" 1070-1080 Carbon Steel Zinc Clear ASME B18.8.2
| Package Length (in) | 1.00" |
|---|---|
| Package Width (in) | 0.30" |
| Package Height (in) | 1.50" |
| Double Shear Strength Minimum | 10800.0000 Pound-Force |
| Duty | Standard Duty |
| Hardness | HV 458-560 |
| Illustration | PHL-SP |
| Inch or Metric | Inch |
| Material Grade (English United States) | 1070-1080 |
| Outside Diameter | 0.3130 in |
| Outside Diameter Fraction | 5/16 in |
| Outside Diameter Maximum | 0.3300 in |
| Outside Diameter Minimum | 0.3210 in |
| Overall Length | 1.7500 in |
| Overall Length Fraction | 1-3/4 in |
| Overall Length Maximum | 1.7700 in |
| Overall Length Minimum | 1.7300 in |
| Finish (Pins) | Zinc Clear |
| Material (Pins) | High Carbon Steel |
| Recommended Hole Diameter Range | .312 in to .318 in |
| Specification | ASME B18.8.2 |
| Type (Spring Pins) | Slotted Spring Pin |
| Wall Thickness | 0.0620 in |
