Features
Specifications

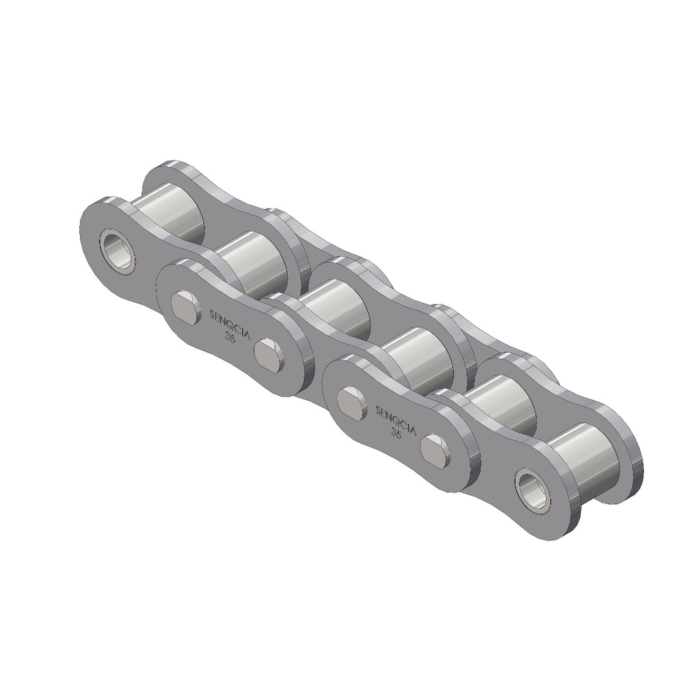

SENQCIA Inspire Series™ SBR® riveted roller chain is manufactured in Japan in accordance with the ASME/ANSI B29.1 American roller chain standard. These chains offer exceptional performance and long life in a wide variety of applications. Note that this particular size is rollerless and therefore a fixed bushing engages the sprocket teeth. Chain pins are produced from a special boron steel to improve strength. Solid cold forged bushings and a patented pin treatment extend chain wear life and greatly reduce break-in wear. Packaged chains are pre-lubricated with high quality wax-type grease and come with a necessary connecting link to join the ends. Offset links (used to shorten or lengthen a chain strand by 1 pitch) are also available and sold separately. This chain is packaged in a 10ft box.
- Premium Imported Roller Chain
- Solid Bushing, Solid Roller Design
- High,Load Ratings For Demanding Drives
| Brand | MAXCO |
|---|---|
| UPC | 458011380008 |
| Store Location (Lititz, PA) | Aisle 09, Section S3 |
| Package Length (in) | 7.80" |
| Package Width (in) | 4.80" |
| Package Height (in) | 0.60" |
| Manufacturer Part Number | 35RB |
| Type | Roller Chain |
| Size | #35 |
| Pitch | 3/8" |
| Width | .188" |
| Height | .347" |
| Rating | 2,400 lbs |
| Package_qty | 10 ft Box |
