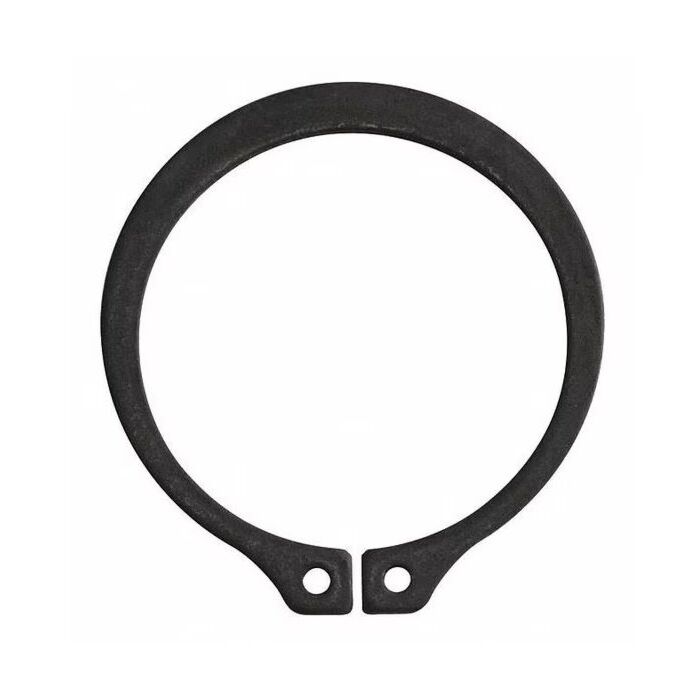

Carbon Spring Steel Phosphate External Rotor Clip Snap Ring - 3 in.
SKU: SRE3
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$4.99
Features
Specifications
Carbon Spring Steel Phosphate External Rotor Clip Snap Ring - 3 in.
| Allowable Corner Chamfers | 0.0700" |
|---|---|
| Allowable Corner Radii | 0.1170" |
| Clearance Diameter Expanded Over Shaft | 3.6020" |
| Clearance Diameter Released in Groove | 3.4420 in |
| Duty | Standard Duty |
| Edge Margin | 0.2430" |
| Free Diameter | 2.7800" |
| Free Diameter Tolerance | +.020/-.030 |
| Groove Depth | 0.0800" |
| Groove Diameter | 2.8400" |
| Groove Diameter to Shaft Concentricity | 0.0060" |
| Groove Width | 0.1000" |
| Hardness | HRC 47-52 |
| Hole Diameter | 0.1250" |
| Hole Diameter Tolerance | +.015/-.002 |
| Illustration | PHL-SH |
| Inch or Metric | "ch |
| Lug Height | 0.2640" |
| Lug Height Tolerance | ±.005 |
| Maximum Section | 0.2640" |
| Maximum Section Tolerance | ±.007 |
| Maximum Thrust Load | 7350.0000 Pound-Force |
| Minimum Section | 0.1380" |
| Minimum Section Tolerance | ±.007 |
| Shaft Diameter | 3.0000" |
| Shaft Diameter Fraction | 3" |
| Finish (Snap Rings) | Phosphate |
| Material (Snap Rings) | Carbon Spring Steel |
| Type (Snap Rings) | Snap Rings External |
| Style | Stamped |
| Thickness | 0.0930" |
| Thickness Tolerance | ±.003 |
| Clearance Diameter Released" Groove | 3.4420" |
