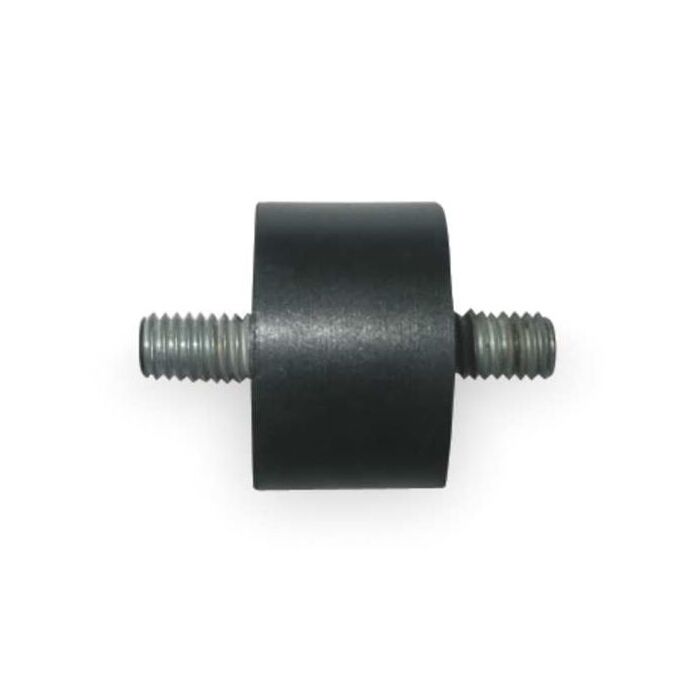

3/8-16 UNC 1 - 9/16 in Cylindrical Vibration Isolator
SKU: 2NPC2
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$7.79
Features
Specifications
Cylindrical Vibration Isolator, 3/8-16, UNC, 1 - 9/16 in Cylinder Dia, 5/8 in Thread Length, 0.63 in Stud Length, 1 in Height, Rubber, Compression Mount, 125 lb Maximum Load Downward Compression, 20 lb Maximum Load Sideways Shear, Two Threaded Studs Vibration Isolator Style
| Store Location (Lititz, PA) | Aisle 09, Section X4 |
|---|---|
| Package Length (in) | 2.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.60" |
| Thread Size | 3/8-16 |
| Thread Type | MNPT |
| Cylinder Diameter | 1 - 9/16 in |
| Thread Length | 5/8 in |
| Stud Length | 0.63 in |
| Height | 1 in |
| Material | Rubber |
| Mounting Type | Compression |
| Maximum Load Downward Compression | 125 lb |
| Maximum Load Sideways Shear | 20 lb |
| Vibration Isolator Style | Two Threaded Studs |
