Lovejoy LLC

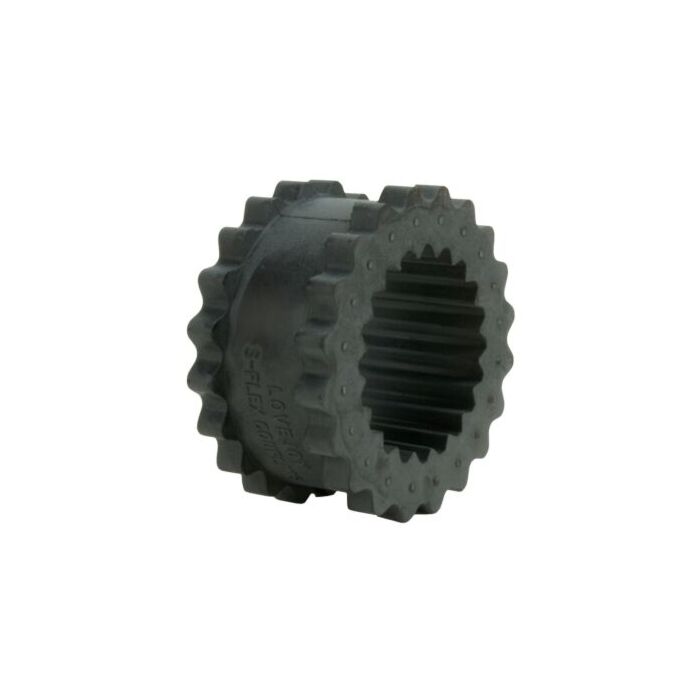

2-3/4 in 7.06 in 1.63 in 1-Piece Coupling Sleeve
SKU: 10JE | Location: Aisle 10, Section W2
$99.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
2 In stock
Features
Specifications
These sleeves feature a one-piece design molded in EPDM & Neoprene rubber. In the case of JES & JNS Types, the one-piece design is split to provide for ease of installation and removal.
- Lovejoy offers flexible sleeves for S-Flex Endurance couplings in three designs: one-piece solid, one-piece split and two-piece with retaining ring
- The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
- Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
- No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
- Torque is transmitted through shear loading of the sleeve
- All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
Brand | Lovejoy LLC |
---|---|
UPC | 685144354501 |
Store Location (Lititz, PA) | Aisle 10, Section W2 |
Package Length (in) | 8.60" |
Package Width (in) | 7.80" |
Package Height (in) | 4.00" |
Manufacturer Part Number | 68514435450 |
Type | 1-Piece |
Series | S-Flex |
Bore Diameter | 2-3/4 in |
Outside Diameter | 7.06 in |
Overall Length | 1.63 in |
Torque Rating | 3735 in-lb |
Material | EPDM |
Coupling Size | 10JE |
Suitable For Use With | S-Flex Series Flexible Coupling Assembly |
