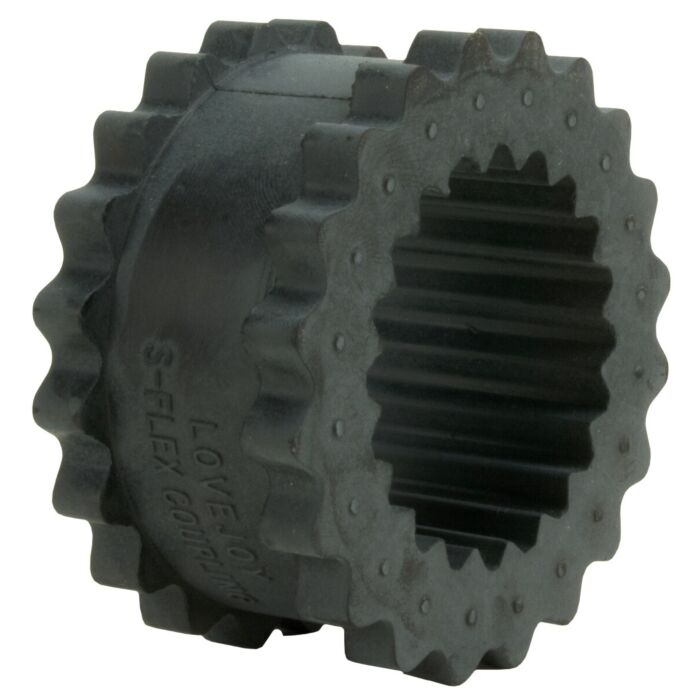

1.438 in 3-3/4 in 0.88 in 1-Piece Coupling Sleeve
SKU: 6JE
| Location: Aisle 10, Section W2
$42.99
3 In stock
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
Features
Specifications
These sleeves feature a one-piece design molded in EPDM & Neoprene rubber. In the case of JES & JNS Types, the one-piece design is split to provide for ease of installation and removal.
- Lovejoy offers flexible sleeves for S-Flex Endurance couplings in three designs: one-piece solid, one-piece split and two-piece with retaining ring
- The one-piece split design provides solutions for applications with unique requirements where small shaft separations inhibit the installation of a one-piece solid sleeve
- Pre-molded teeth along the diameter of the sleeve engage with teeth of the coupling flanges
- No clamps or screws are needed to connect the flanges with the flexible sleeve which securely lock together under torque for smooth transmission of power
- Torque is transmitted through shear loading of the sleeve
- All three sleeve materials are highly elastic which permits the S-Flex coupling to protect connected equipment from harmful shock loading, vibration and shaft misalignment
| Brand | Lovejoy |
|---|---|
| UPC | 685144355690 |
| Store Location (Lititz, PA) | Aisle 10, Section W2 |
| Package Length (in) | 4.60" |
| Package Width (in) | 4.40" |
| Package Height (in) | 2.40" |
| Manufacturer Part Number | 68514435569 |
| Type | 1-Piece |
| Series | S-Flex |
| Bore Diameter | 1.438 in |
| Outside Diameter | 3-3/4 in |
| Overall Length | 0.88 in |
| Torque Rating | 585 in-lb |
| Material | EPDM |
| Coupling Size | 6JE |
| Suitable For Use With | S-Flex Series Flexible Coupling Assembly |
