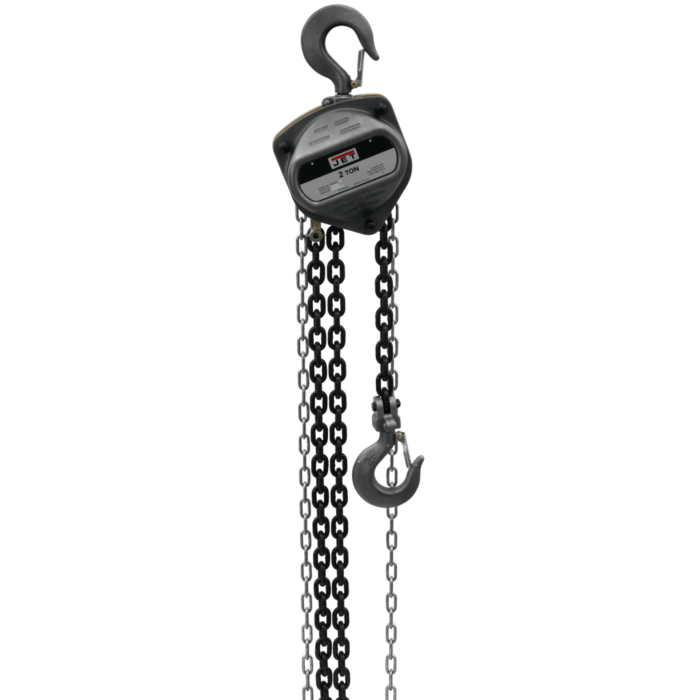

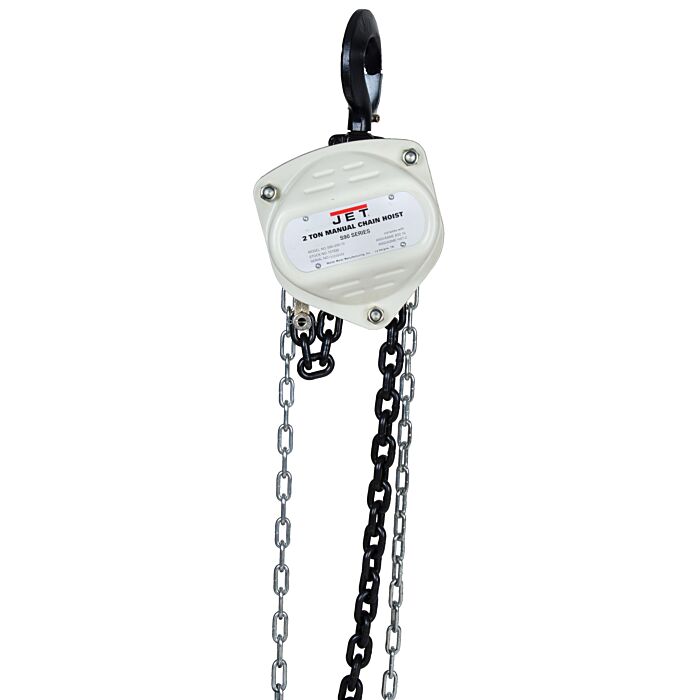

JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
- Grade 80 black oxide coated load chain for added durability
- Heat Treated Load Plates
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
- Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
- Needle bearings support the load sheave to increase efficiency and promote smooth operation
- Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
- The smaller body and lightweight design are ideal for confined areas and low headroom applications
- The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
Brand | JET Tools |
---|---|
UPC | 731325218916 |
Store Location (Lititz, PA) | Aisle 12 End Cap |
Manufacturer Part Number | JT9-101930 |
Country of Origin | China |
Length | 15.0 |
Width | 11.0 |
Height | 8.5 |
Weight | 40.0 |
Warranty | Lifetime |
Hand Chain To Lift Load 1 ft. | 71 |
Capacity (Lbs.) | 4400.0000 |
Lift (Ft.) | 10.0000 |
Load Capacity (Tons) | 2 |
Load Chain Dimensions dia/mm) | 8 X 24 |
Overload Protection | No |
Lbs. of Pull to Lift Capacity | 91.0000 |
Headroom (In.) - TS_14 | 17-1/2 |
