Manufacturer Part Number | D222NCP |
Height | 9.25 in |
Device Mounting | surface |
Tightening Torque | 35-35 lbf.in 2.08-5.26 mm² (AWG 14...AWG 10) || 45-45 lbf.in 8.37-8.37 mm² (AWG 8) || 35-35 lbf.in (AWG 14...AWG 10) || 45-45 lbf.in 12.3-21.12 mm² (AWG 6...AWG 4) || 50-50 lbf.in 26.67-26.67 mm² (AWG 3) |
Short-Circuit Current | 100 kA maximum depending on fuse H, K or R |
Net Weight | 4 kg |
Fuse Type | H, K or R |
Electrical Connection | lugs |
Awg Gauge | AWG 12...AWG 3 aluminium || AWG 14...AWG 3 copper |
Width | 6.75 in |
Wiring Configuration | 3-wire |
Depth | 3.63 in |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2305006EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | N/A |
Eu Rohs Directive | Compliant with Exemptions |
Disconnector Device Type | fusible disconnect switch |

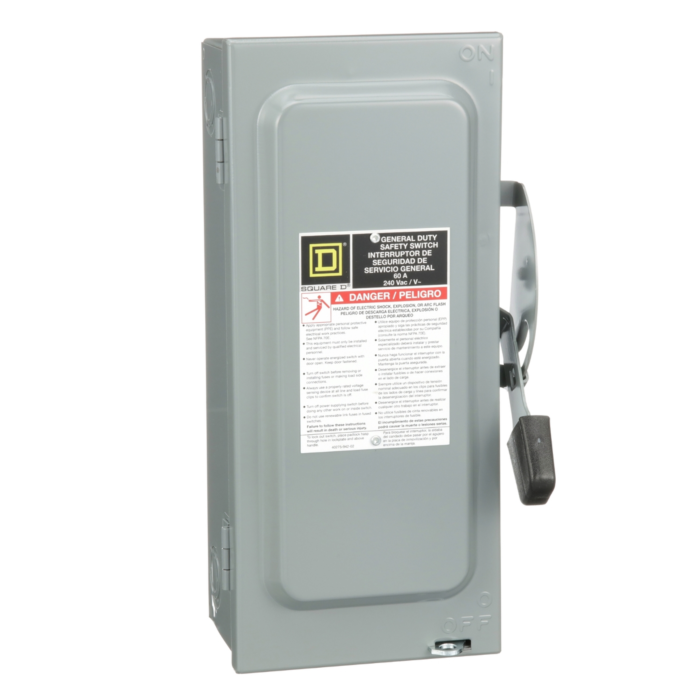

Product Or Component Type | Single Throw Safety Switch |
Phase | 3 phase |
Series Name | general duty |
Nema Degree Of Protection | NEMA 1 |
Line Rated Current | 60 A |
Motor Power Hp | 1.5 hp at 120 V AC 60 Hz for 1 phase motors || 3 hp at 120 V AC 60 Hz for 3 phase motors || 3 hp at 240 V AC 60 Hz for 1 phase motors || 7.5 hp at 240 V AC 60 Hz for 3 phase motors || 10 hp at 240 V AC 60 Hz for 1 phase motors || 15 hp at 240 V AC 60 Hz for 3 phase motors |
Device Composition | neutral (factory installed) |
Device Application | residential |
Number Of Poles | 2 |
[Ue] Rated Operational Voltage | 240 V AC |
Product Certifications | UL listed file E2875 |
