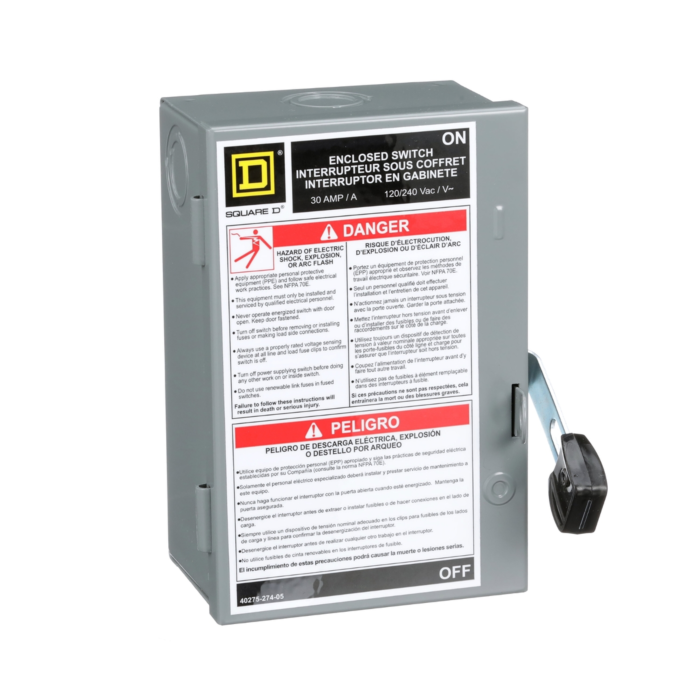

- The light-duty safety switch has visible blades and a ground lug as standard features
Brand | Schneider Electric |
---|---|
UPC | 785901090526 |
Store Location (Lititz, PA) | Aisle 08, Section A2 |
Package Length (in) | 6.40" |
Package Width (in) | 5.40" |
Package Height (in) | 8.60" |
Manufacturer Part Number | L211N |
Product Certifications | UL listed file E2875 |
Warranty | 18 months |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1310005EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Circularity Profile | N/A |
Eu Rohs Directive | Compliant |
Height | 7.63 in |
Device Mounting | surface |
Tightening Torque | 30-30 lbf.in 2.082-8.367 mm² (AWG 14...AWG 8) || 30-30 lbf.in 3.307-8.367 mm² (AWG 12...AWG 8) |
Short-Circuit Current | 10 kA |
Net Weight | 1.36 kg |
Fuse Type | plug |
Awg Gauge | AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium |
Width | 6.13 in |
Wiring Configuration | 3-wire |
Depth | 4 in |
Weight | 1.36 kg |
Disconnector Device Type | fusible disconnect |
Product Or Component Type | Single Throw Safety Switch |
Phase | 3 phase |
Series Name | light duty |
Nema Degree Of Protection | NEMA 1 |
Line Rated Current | 30 A |
Device Composition | neutral (factory installed) |
Device Application | furnace || garages |
Number Of Poles | 2 |
[Ue] Rated Operational Voltage | 240 V AC |
Square D Safety Switch User Manual - GEX75737 (pdf)
Enclosed Switches Installation Instructions - 40271-092-03 (pdf)
30 or 60 A Light Duty Enclosed Switch Installation Instructions - 40270-995-04 (pdf)
Illustration: Wiring Diagram for L211N and L221N - TI_WD_L211N.svg
Illustration: Dimensions for L111N L211N and L221N - TI_DIM_L111N_A.svg
General Duty Safety Switches, Certificate, UL - E2875+19930308 (pdf)
Square D Enclosed Safety Switches Catalog - 3100CT1602 (pdf)
Digest Catalog 03: Safety Switches - 0100CT1901_SEC-03 (pdf)
General Duty & Light Duty Safety Switches - ENVPEP1310005EN (pdf)
