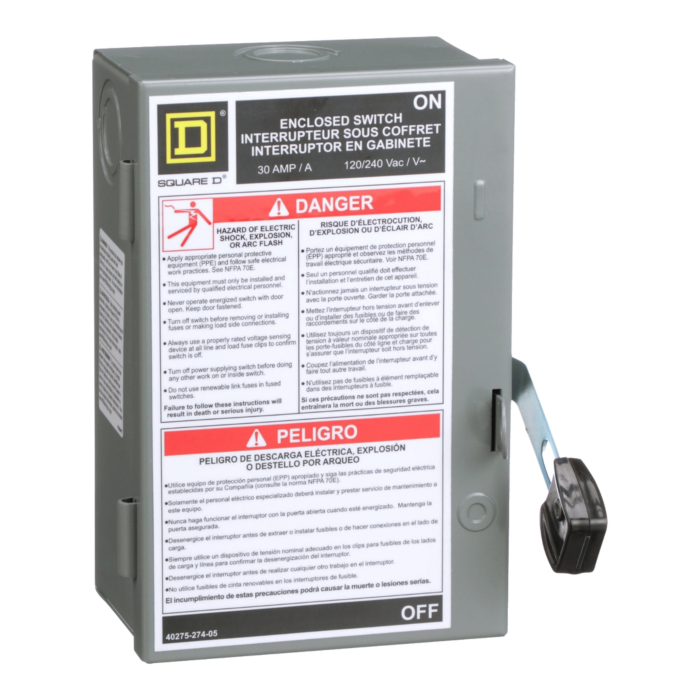

30A 230V 3-Wire 2-Pole Light Duty Cylinder Style Fusible Safety Switch with Neutral, Type 1
SKU: L221N
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$69.99
Features
Specifications
Downloads
The l
ight duty safety switches are ideal for home applications in disconnecting power to workshops, hobby rooms, furnaces, and garages. The light duty safety switch has visible blades and a grounding kit as standard features. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This light duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1.
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Brand | Square D |
|---|---|
| UPC | 785901499022 |
| Store Location (Lititz, PA) | Aisle 08, Section A1 |
| Package Length (in) | 6.60" |
| Package Width (in) | 5.40" |
| Package Height (in) | 8.60" |
| Manufacturer Part Number | L221N |
| Country of Origin | Mexico |
| Width | 6.13 in |
| Height | 7.63 in |
| Disconnector Device Type | Fusible Disconnect |
| Product Or Component Type | Single Throw Safety Switch |
| Phase | 3 phase |
| Series | Light Duty |
| Nema Degree Of Protection | NEMA 1 |
| Line Rated Current | 30 A |
| Device Composition | Neutral |
| Device Application | Furnace, Garages, Workshops |
| Number Of Poles | 2 |
| [Ue] Rated Operational Voltage | 240 V AC |
| Fuse Type | H or J |
| Device Mounting | surface |
| Tightening Torque | 30-30 lbf.in 2.082-8.367 mm² (AWG 14...AWG 8) || 30-30 lbf.in 3.307-8.367 mm² (AWG 12...AWG 8) |
| Short-Circuit Current | 10 kA |
| Awg Gauge | AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium |
| Depth | 4 in |
| Rohs Exemption Information | Yes |
| Packaging Made With Recycled Cardboard | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310005EN |
| Packaging Without Single Use Plastic | No |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Circularity Profile | N/A |
| Take-Back | No |
| Eu Rohs Directive | Compliant |
| Warranty | 18 months |
