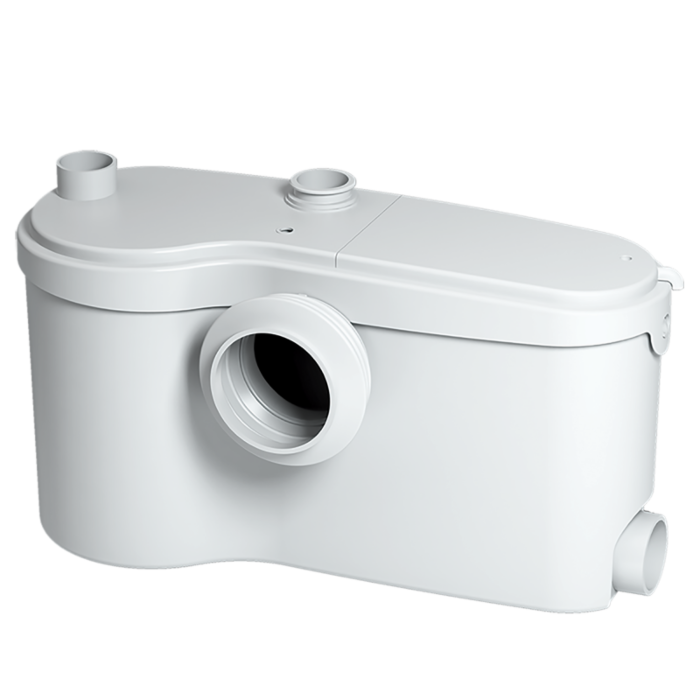

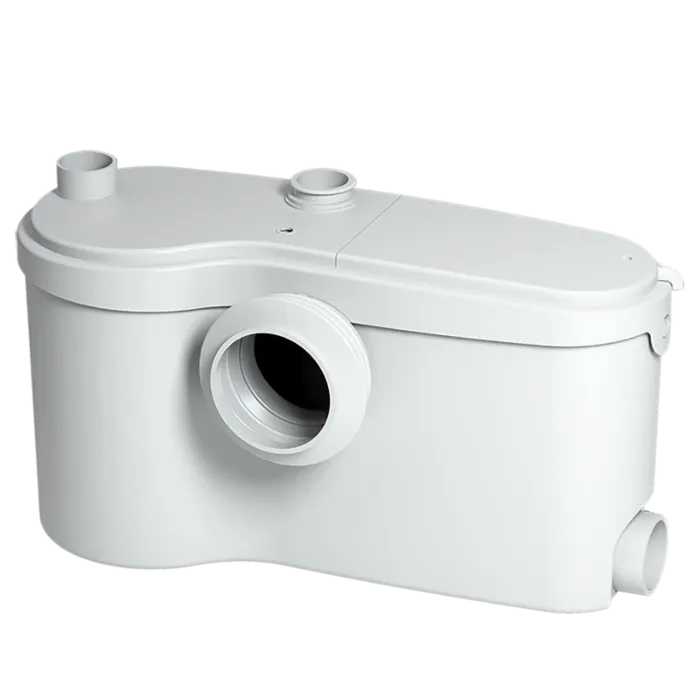

120 V 9 A 60 Hz Grinding Pump

The Sanibest Pro is a 1 hp pump system used to install a complete bathroom up to 25 feet below the sewer line or even up to 150 feet away from a soil stack. It incorporates a grinder system which is ideal for uncontrolled environments in both residential and commercial applications (ie. rental unit, offices, warehouses, etc.). The Sanibest Pro is designed to handle sanitary products that may have been flushed down the toilet; such may consist of condoms, sanitary napkins, q-tips, dental floss, etc. The inside of the Sanibest Pro comprises of a pressure chamber, which starts and stops the unit and the motor, which drives the stainless steel cutting blade and the pump. When the flush is activated, the water flowing into the Sanibest Pro activates a micro switch in the pressure chamber, which in turn starts the motor. The motor is sealed for life in an oil filled enclosure. A common spindle/shaft drives the impeller and the blades. The moving parts therefore are kept to an absolute minimum. Water and organic waste matter enter the chamber and are reduced to slurry as the blades rotate at 3600 RPM. The reduced solids are picked up at the bottom and the impeller mounted beneath the motor ejects the waste. The unit pumps the effluent upward to 25 feet and/or 150 feet horizontally (with gravity fall). Once the water level in the container goes down, the micro switch deactivates. A normal operating cycle for the Sanibest Pro takes about 10 - 12 seconds depending upon the discharge pipe run configuration. In addition, the Sanibest Pro will also discharge gray water from a variety of other sanitary fixtures such as a sink, a bath/shower, a urinal and even a washing machine (indirect connection). When adding a bathtub/shower, a base will have to be constructed. This base should be made out of a 2 inx 8 in on edge to allow for the installation of a p-trap and the required 1/4 in per foot gravity flow towards the pump unit. The wastewater from other sanitary fixtures is discharged into the Sanibest Pro via two 2-inch inlets on either side of the housing. The discharge elbow on top of the Sanibest Pro can be rotated 360 degrees depending on the discharge installation. A non-return valve (included in assembly) prevents back flow into the unit.

• Less likely to corrode
• Low inlets for easy installation
• Easy access service panel
• Grinder system designed to handle sanitary products
• CSA (IPC, NSPC), IAPMO (UPC)
