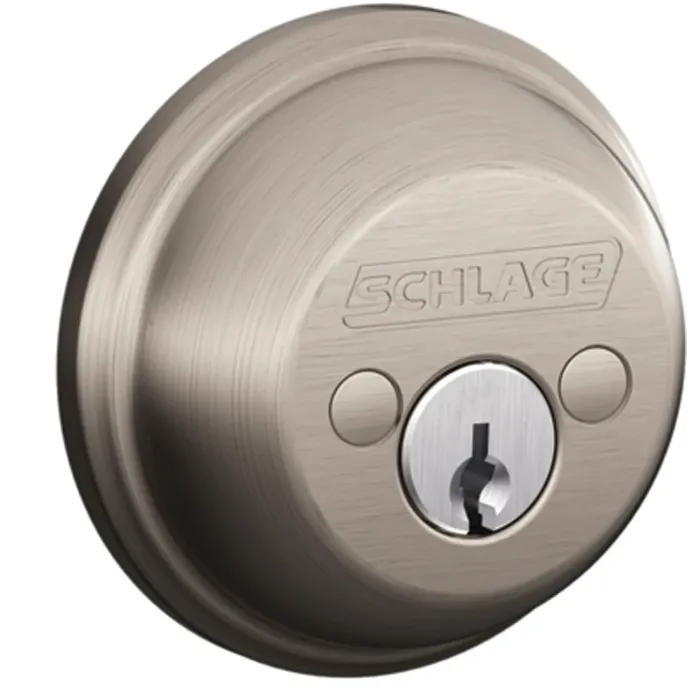

Double cylinder deadbolt in satin nickel.
- Unique snap and Stay™ design holds deadbolt in place while tightening screws
Brand | Schlage |
---|---|
UPC | 043156171248 |
Store Location (Lititz, PA) | Aisle 18, Section H4 |
Package Length (in) | 7.80" |
Package Width (in) | 4.60" |
Package Height (in) | 3.60" |
Manufacturer Part Number | B62N619 |
Backset Size | 2-3/8 2-3/4 in |
Backset Type | Adjustable |
Bolt Type | Mechanical |
Commercial/Residential | Residential |
Cross Bore Diameter | 2-1/8 in |
Cylinder Type | 5-Pin Standard Cylinder |
Dimensions | 0.879 in L x 2.39 in W x 2.39 in H |
Door Thickness | 1-3/8 to 1-3/4 in |
Faceplate Size | 1 x 2-1/4 in |
Finish | Satin Nickel |
Includes | Mounting Hardware |
Interior Locking | Yes |
Key Type | SC1 |
Keyway Type | C |
Latch Housing Diameter | 7/8 in |
Latch Type | Deadbolt Latch |
Material | Metal |
Number of Cylinders | 2 |
Projection Size | 1 in |
Security Grade | 1 |
Strike Size | 2.75 in H x 1.13 in W |
Strike Type | Round Corner |
Throw Length | 1 in |
Type | Traditional |
