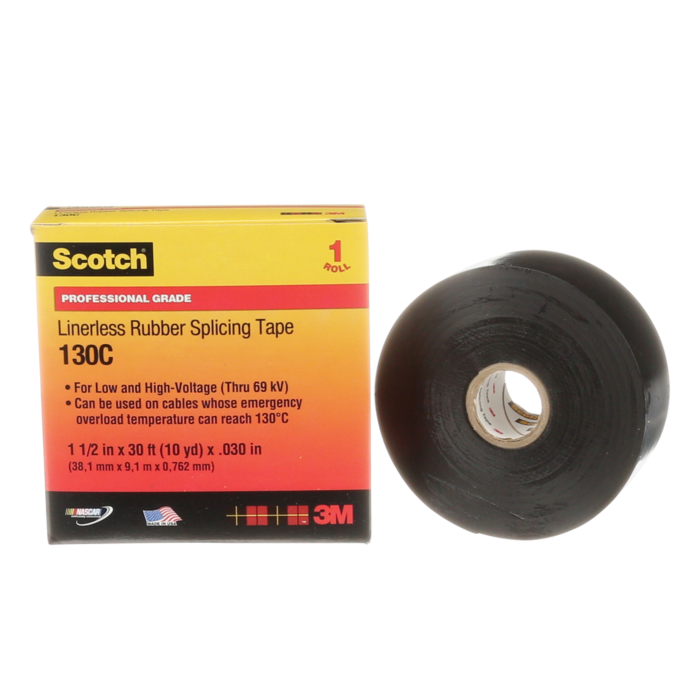

Scotch Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 F (90 C) with emergency overload up to 266 F (130 C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
- RUBBER-BASED ADHESIVE and the self-fusing, ethylene propylene, rubber backing provides UV resistance.
- EXCELLENT PHYSICAL AND ELECTRICAL PROPERTIES promote moisture seal and void-free buildups.
- DESIGNED FOR USE IN SPLICING and terminating wires and cables. Rated up to 90 degrees C (194 degrees F) continuous operating temperatures and short-term 130 degrees C (266 degrees F) overload service.
- PROVIDES EXCELLENT THERMAL DISSIPATION of splice heat.
- LINERLESS, SELF-BONDING, PRIMARY insulating tape rated through 69 kV (volts). This product can be used for low and high-voltage (through 69 kV) applications.
- Meet ASTM D4388, D4325, and C518. RoHS 2011/65/EU Compliant.
Brand | 3M |
---|---|
UPC | 054007417187 |
Store Location (Lititz, PA) | Aisle 08 End Cap |
Package Length (in) | 4.40" |
Package Width (in) | 3.80" |
Package Height (in) | 1.60" |
Manufacturer Part Number | 7000006086 |
Country of Origin | United States |
Adhesive Type | Rubber |
Overall Width (Imperial) | 1.5 in |
Overall Width (Metric) | 38.1 mm |
Total Tape Thickness without Liner (Imperial) | 30.0 mil |
Total Tape Thickness without Liner (Metric) | 0.76 mm |
Application | Insulation |
Application/Industry | Utility |
Backing (Carrier) Material | Ethylene Rubber |
Backing (Carrier) Thickness (Imperial) | 30.0 mil |
Backing (Carrier) Thickness (Metric) | 0.76 mm |
Dielectric Strength | 750.0 V/mil |
Elongation at Break | 850.0 % |
Features | Self-sticking; Vulcanizing; UV-resistant |
Insulation Resistance | >10^15 ohms |
Maximum Operating Temperature (Celsius) | 90.0 Degree |
Maximum Operating Temperature (Fahrenheit) | 194.0 Degree |
Minimum Operating Temperature (Celsius) | 0.0 Degree |
Overall Length (Imperial) | 30.0 ft |
Overall Length (Metric) | 9.1 m |
Product Color | Black |
Product Markets | Power Distribution |
Rolls per Carton | 1.0 |
Shelf Life UOM | Year |
Specifications Met | ASTM D-4388 Type 1, 2 & 3, ASTM D-4325, RoHS 2011/65/EU, HH-I-553C |
Tape Grade | Premium |
Tensile Strength (Imperial) | 250.0 |
Tensile Strength (Metric) | 1723.0 kPa |
Units per Case | 24.0 |
Item Status | Active |
ETIM Class 7.0 | EC000128 |
ETIM Class 8.0 | EC000128 |
