Features
Specifications

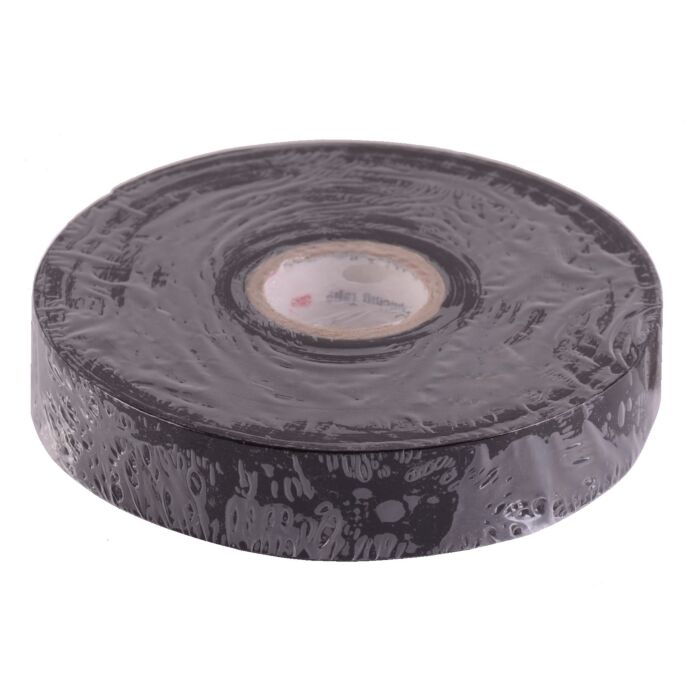

Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
- Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
- Provides an excellent thermal dissipation of splice heat
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Withstands temperatures up to 194 °F (90 °C)
- ASTM Approved and RoHS 2011/65/EU Compliant
Brand | 3M |
---|---|
UPC | 054007417170 |
Store Location (Lititz, PA) | Aisle 08 End Cap |
Package Length (in) | 4.20" |
Package Width (in) | 4.00" |
Package Height (in) | 0.60" |
Manufacturer Part Number | 7000006085 |
Adhesive Material | Rubber Resin |
Application | Insulation |
Application/Industry | Utility - Commercial Construction - Solar - Communications - Wind Power - Industrial Construction - Appliance and Fixture - Maintenance and Repair Operations - Mining |
Backing Material | Ethylene Propylene Rubber |
Breaking Strength (Imperial) | 7.5 lb/in |
Dielectric Strength | 750 V/mil |
Elongation at Break | 850% |
Insulation Resistance | >10^15 Ohm |
Maximum Operating Temperature (Celsius) | 90 Degree Celsius |
Maximum Operating Temperature (Fahrenheit) | 194 Degree Fahrenheit |
Overall Width (Imperial) | 0.75 in |
Overall Width (Metric) | 19.05 mm |
Product Color | Black |
Product Type | Rubber and Splicing Tapes |
Self-extinguishing | No |
Self-sticking | Yes |
Suitable for High Voltage | Yes |
Tape Color | Black |
Tape Grade | Premium |
Tape Type | Professional Grade Rubber Tape |
Tensile Strength (Imperial) | 250 psi |
Total Tape Thickness without Liner (Imperial) | 30 mil |
Total Tape Thickness without Liner (Metric) | 0.76 mm |
UV Resistant | Yes |
Voltage Application | High Voltage |
Voltage Rating | 69 kV |
