3M

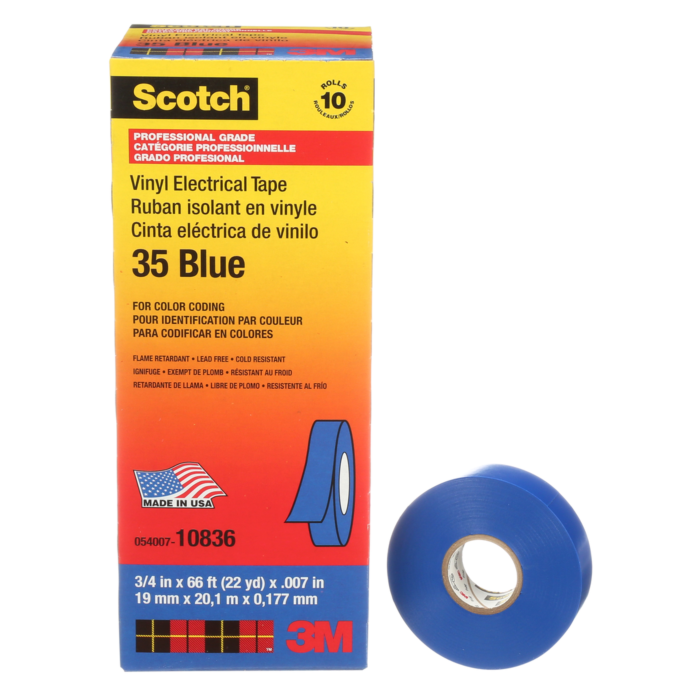

Scotch® Vinyl Color Coding Electrical Tape 35, 3/4 in x 66 ft, Blue, 10 rolls/carton, 100 rolls/Case

SKU: 3M35B
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store Not stocked
Features chevron-down chevron-up
Scotch Vinyl Color Coding Electrical Tape 35 is a versatile, premium-grade marking solution for harsh and demanding electrical and mechanical applications. With a sturdy 7 mil (0.178 mm) thickness, this fade-resistant tape excels in wire and phase identification, motor lead color coding, piping system organization, and safety zone marking. Engineered for reliability, it handles applications up to 600V and endures temperatures from 14 °F to 221 °F (-10 °C to 105 °C), delivering consistent results when you need them the most. Its resistance to fading (the product in white is fully UV-resistant) and fluctuating weather conditions helps give long-lasting performance in a variety of residential, commercial, and industrial operations. Thanks to its robust combination of an aggressive, pressure-sensitive rubber-resin adhesive and a flexible PVC backing, the tape provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes. Offering exceptional elasticity that conforms to virtually any shape, the tape is ideal for insulating electrical wires while also being compatible with synthetic cable insulations, jackets, and splicing compounds. The tape is flame retardant and meets the standards for UL 510 Listed, CSA C22.2 No.197 and VDE Mark Certificate no. 130462; Type 7: IEC 60454-3-1-7/F-PVCP/90 Certified, IEC 60454-3-1-7/F-PVCP/90, and RoHS Compliant. This product is available in 10 colors to meet your specific requirements. Experience the dependable environmental protection and performance of this tape.
  • MULTI-PURPOSE: Excels in wire and phase identification, motor lead color coding, piping system organization, cable jacket repair, and safety zone marking
  • RELIABLE PERFORMANCE: Provides primary electrical insulation for splices up to 600V in demanding indoor and weather-protected environments
  • ENDURES THE ELEMENTS: Protects in challenging environments, making it a reliable solution for long-lasting performance
  • BUILT STRONG: Engineered with a pressure-sensitive, rubber-resin adhesive and flexible PVC backing, for excellent, long-lasting electrical and mechanical protection
  • ENHANCED DEFENSE: Provides additional protection for LV/MV/HV joints and splices when used as an overwrap with rubber splicing and mastic tapes
  • TEMPERATURE-RESISTANT: Performs within temperatures from 14 °F to 221 °F (-10 °C to 105 °C)
Specifications chevron-down chevron-up
Brand 3M
UPC 638060079928
Package Length (in) 3.40"
Package Width (in) 2.80"
Package Height (in) 0.60"
Manufacturer Part Number 7000006095
Country of Origin United States
Overall Width (Imperial) 0.75
Overall Width (Imperial) UOM in
Overall Width (Metric) 19.0
Overall Width (Metric) UOM mm
Product Color Blue
Tape Grade Professional
Total Tape Thickness without Liner (Imperial) 7.0
Total Tape Thickness without Liner (Imperial) UOM mil
Total Tape Thickness without Liner (Metric) 0.178
Total Tape Thickness without Liner (Metric) UOM mm
Adhesive Type Rubber
Application Electrical Maintenance
Backing (Carrier) Material PVC
Dielectric Strength 1255.0
Dielectric Strength UOM mV
Electrolytic Corrosion Factor 0.9
Elongation at Break 225
Insulation Resistance > 10^6 megohms
Maximum Operating Temperature (Celsius) 105.0
Maximum Operating Temperature (Celsius) UOM Degree
Maximum Operating Temperature (Fahrenheit) 221.0
Maximum Operating Temperature (Fahrenheit) UOM Degree
Minimum Operating Temperature (Celsius) 0.0
Minimum Operating Temperature (Celsius) UOM Degree
Minimum Operating Temperature (Fahrenheit) 32.0
Minimum Operating Temperature (Fahrenheit) UOM Degree
Overall Length (Imperial) 66.0
Overall Length (Imperial) UOM ft
Overall Length (Metric) 20.1
Overall Length (Metric) UOM m
Product Markets Electrical Construction
Rolls per Carton 10.0
Rolls per Case 100.0
Shelf Life 1825
Shelf Life UOM Year
Specifications Met CSA Certified, RoHS 2011/65/EU, UL Listed, VDE 0340-TEIL1
Voltage Rating 600 V
