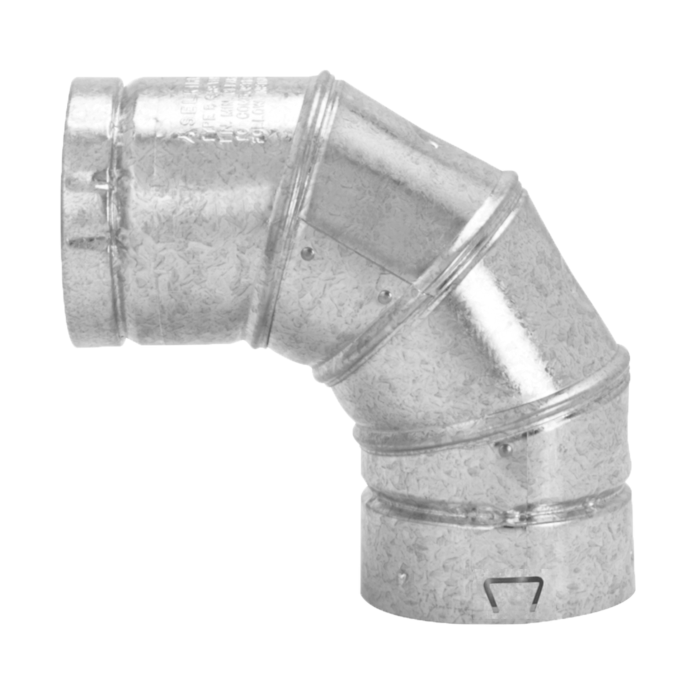

Adjustable Stove Pipe 90 Deg Elbow
SKU: 104230
$34.99
Features
Specifications
This adjustable 90-degree elbow for gravity draft venting of listed LP or natural gas burning appliances has a maximum capacity of 100 million BTU per hour and a maximum temperature of 500 degrees Fahrenheit. It features an aluminum inner wall and galvanized outer wall. Suitable for wall applications, but not for wall furnaces. Comes boxed.
- Used when an offset is required to avoid obstructions such as rafters, joists, and other construction obstacles
- Used to orient pipe between vertical and horizontal orientation
- Four piece adjustable elbow twists for easy offsets
| Brand | SELKIRK |
|---|---|
| UPC | 053713125805 |
| Store Location (Lititz, PA) | Aisle 01, Section D4 |
| Package Length (in) | 9.00" |
| Package Width (in) | 9.50" |
| Package Height (in) | 5.00" |
| Manufacturer Part Number | 104230 |
| Brand Name | Selkirk |
| End 1 Diameter | 4" |
| End 2 Diameter | 4" |
| Adjustable | Yes |
| Bend Degree | 90 deg |
| Material | Aluminum |
| Product Type | Stove Pipe Elbow |
| Packaging Type | Boxed |
| Vent Type | Type B |
| Number | 4RV-EL90 |
| UL Listed | Yes |
| Maximum Temperature | 500 °F |
