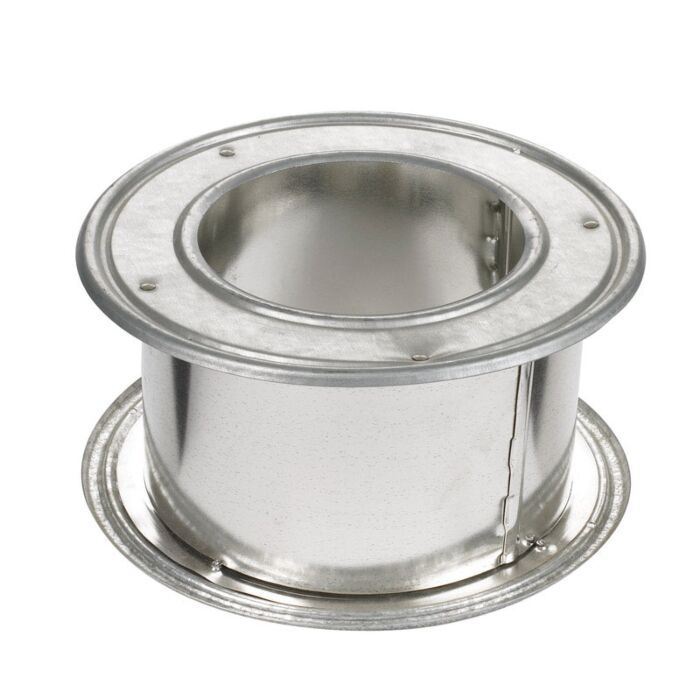

Vent Wall Thimble
SKU: 187704
$22.99
Features
Specifications
This 4-inch Type B gas vent wall thimble from the RV collection is designed for installation through combustible walls, ensuring proper clearance and acting as a fire stop. It's adjustable from 4.125 to 7 inches to accommodate various wall thicknesses. The RV series offers round gas vent pipe and fittings for residential, commercial, and industrial use, featuring a snap-together, non-positional lock system with die-formed ends that eliminate the need for cutting or special engineering. Its improved joint design provides a quick and secure connection, and the lock tab feature can be engaged instead of using sheet metal screws, if required by local code.
- Used to ensure clearance to combustibles is maintained
- Wall Thimble also serves as a firestop
- Adjusts from 4 - 1/8" to 7" to fit thickness of wall
| Brand | SELKIRK |
|---|---|
| UPC | 053713130380 |
| Store Location (Lititz, PA) | Aisle 01, Section D3 |
| Package Length (in) | 8.25" |
| Package Width (in) | 8.25" |
| Package Height (in) | 4.25" |
| Manufacturer Part Number | 187704 |
| Brand Name | Selkirk |
| Diameter | 4" |
| Material | Galvanized Steel |
| Product Type | Wall Thimble |
| Maximum Temperature | 550 °F |
| Vent Type | Type B |
| Adjustable | Yes |
| UL Listed | Yes |
