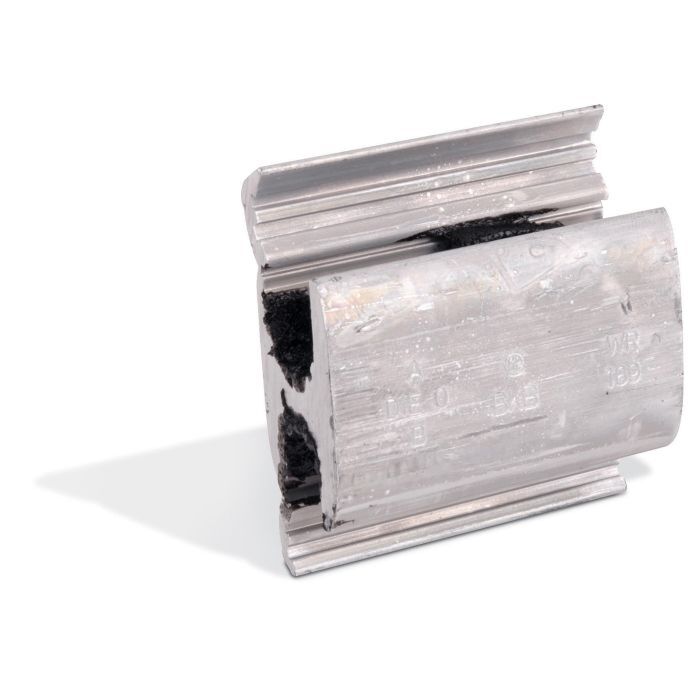

1-7/16 in Aluminum Type WR Wide Range Compression H-Tap Connector
SKU: WR159
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$2.49
- Buy 25 for $2.24 each and save 10%
Features
Specifications
Compression H-Tap Connector, Type WR Wide Range, 1-7/16 in Length, 2-6 AWG ACSR, 1-6 AWG Stranded, 2-6 AWG Solid Main/Run, 2-6 AWG ACSR, 2-6 AWG Solid, 1-6 AWG Stranded Tap, Aluminum, Tin Plated
- For combinations of aluminum-aluminum and aluminum-copper conductors
- Pass the requirements of ANSI C119.4
- Standard compression tools and dies install all sizes
- Seven Connector Program provides superior connector performance, lower connection
- Costs and simplified installation procedures
- Fold-in tabs provide positive tab interlock as tool closes
- Field-proven ribbed design provides unparalleled connector/conductor contact, without
- Distorting the conductor’s shape
- Made of 1350 aluminum alloy
| Brand | Blackburn |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 1.60" |
| Package Width (in) | 0.80" |
| Package Height (in) | 1.00" |
| Type | Type WR Wide Range |
| Length | 1-7/16 in |
| Main/Run Size | 2-6 AWG ACSR, 1-6 AWG Stranded, 2-6 AWG Solid |
| Tap Size | 2-6 AWG ACSR, 2-6 AWG Solid, 1-6 AWG Stranded |
| Material | Aluminum |
| Finish | Tin Plated |
