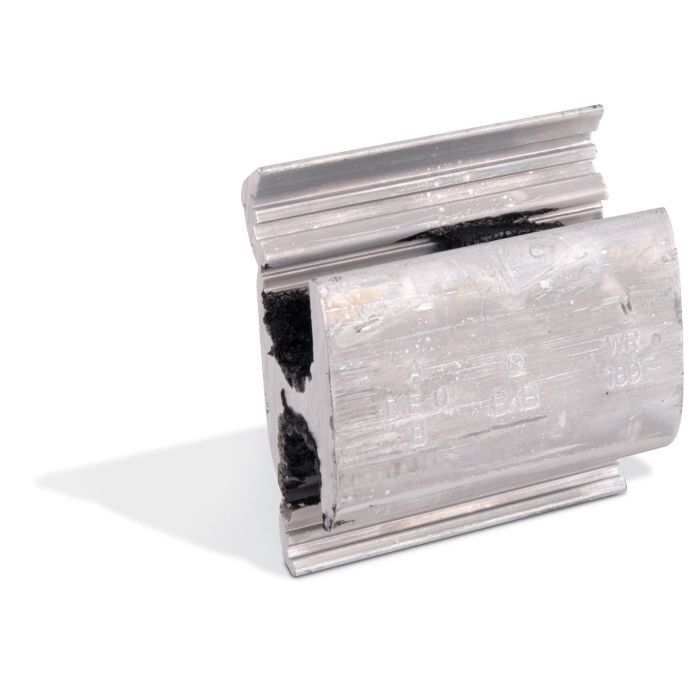

1-13/16 in Aluminum Type WR Wide Range Compression H-Tap Connector
SKU: BWR379
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$7.29
Features
Specifications
Compression H-Tap Connector, Type WR Wide Range, 1-13/16 in Length, 4/0 to 3/0 AWG ACSR, 4/0 AWG Stranded Main/Run, 6-2 AWG ACSR, 6-1 AWG Stranded, 6 to 1/0 AWG Solid Tap, Aluminum, H, ACSR/Aluminum/Copper/Solid/Stranded Conductor
- For combinations of aluminum-aluminum and aluminum-copper conductors
- Pass the requirements of ANSI C119.4
- Standard compression tools and dies install all sizes
- Seven Connector Program provides superior connector performance, lower connection
- Costs and simplified installation procedures
- Fold-in tabs provide positive tab interlock as tool closes
- Field-proven ribbed design provides unparalleled connector/conductor contact, without
- Distorting the conductor’s shape
- Made of 1350 aluminum alloy
- Pre-filled with an oxide inhibitor which is held captive in the rib/connection area
| Brand | Blackburn |
|---|---|
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 2.40" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.20" |
| Type | Type WR Wide Range |
| Length | 1-13/16 in |
| Main/Run Size | 4/0 to 3/0 AWG ACSR, 4/0 AWG Stranded |
| Tap Size | 6-2 AWG ACSR, 6-1 AWG Stranded, 6 to 1/0 AWG Solid |
| Material | Aluminum |
| Shape | H |
| Conductor Type | ACSR/Aluminum/Copper/Solid/Stranded |
