2 AWG Aluminum Stranded Service Entrance Cable (per foot)

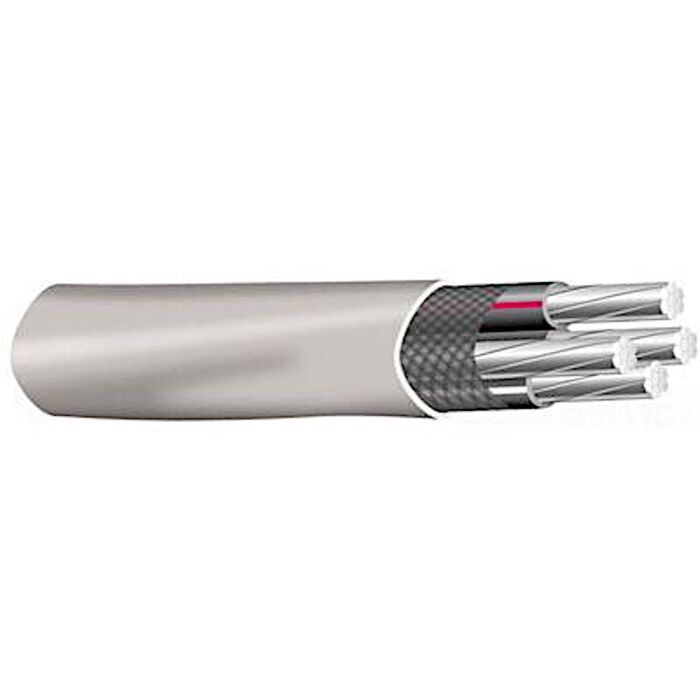

Type SE Style R three conductor insulated, round-type service entrance cable is designed for above-ground service entrance use, as well as interior wiring. The cable meets the requirements of UL and is approved for use in accordance with the recommendations of the NEC as Type SE. CONDUCTOR Compact stranded [AA-8000] Series aluminum alloy. INSULATION Black cross-linked polyethylene [XLPE] IDENTIFICATION Insulated conductors are phase identified. One insulated conductor has a single longitudinal red stripe. One insulated conductor is total surface painted white. One insulated conductor is black. If provided, a fourth insulated conductor has a single longitudinal blue stripe. CONSTRUCTION The conductors are twisted together and a glass- reinforced tape is applied dover the twisted conductors. A polyvinyl chloride (PVC) jacket is extruded over the subassembly The jacket is flame retardant, moisture resistant and sunlight resistant. STRANDING Insulated Conductors 7 Strands Bare Conductor 7 Strands.
