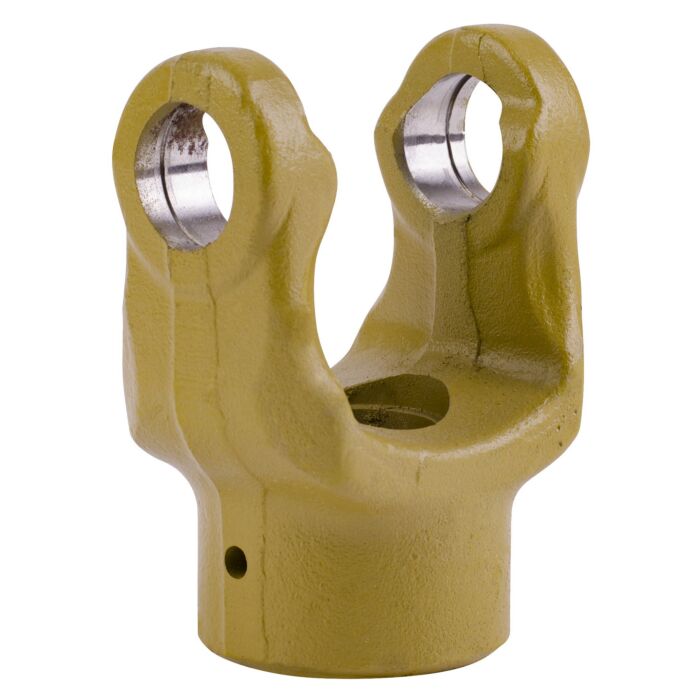

AB4,AW21 series yoke with round bore and pin connection
SKU: 8028410 | Location: Aisle 08, Section W4
$52.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Weasler yokes are made to withstand robust conditions, and engineered for a precise fit. Weasler's Shear Pin Yoke features a pin (bolt) that extends through the yoke and if broken during operation will spin. The compact, efficient design disconnects the power source from the drivetrain when overload occurs and helps prevent the generatation of damaging torque spikes or heat. Once the operator replaces the bolt, the machine can be restarted.
- Implement overload protection.
- Minimal maintenance.
- No damaging heat generation for higher productivity.
- Repeatable overload disengagement setting.
- Smooth disengaged operation, no damaging torque spikes.
- Reduces possibility of damage.
| Brand | Weasler |
|---|---|
| UPC | 728357307732 |
| Store Location (Lititz, PA) | Aisle 08, Section W4 |
| Package Length (in) | 4.80" |
| Package Width (in) | 2.40" |
| Package Height (in) | 4.60" |
| Manufacturer Part Number | 802-8410 |
| Length | 3.74 inch |
| Height | 3.82 inch |
| Width | 2.36 inch |
| Weight | 3.24 lb |
| Series | AB4,AW21 |
| Bore | 1.25" |
| Bore Description | ROUND |
| Connection 1 Description | PIN |
| Connection 2 Description | (1) 1/4 Grade 8 |
| Torque | 10000 in-lb |
| Pin Hole Diameter | 0.253" |
| Bearing Diameter | 1.063" |
| Bearing Span | 2.933" |
| Horsepower at 540 RPM | 45 hp |
| Horsepower at 1000 RPM | 70 hp |
