#4 & 2300 Series 1-3/8" Round Bore Shear Pin Yoke
SKU: 8028435
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$55.61
Features
Specifications

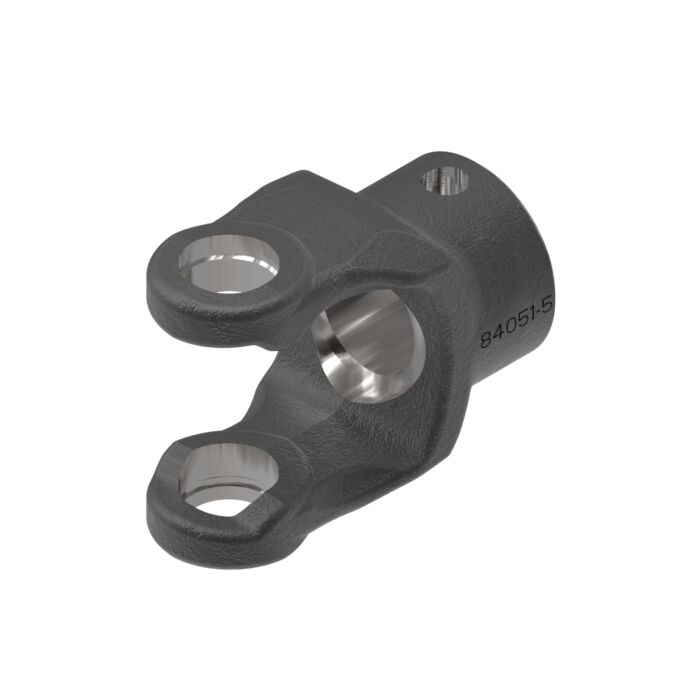

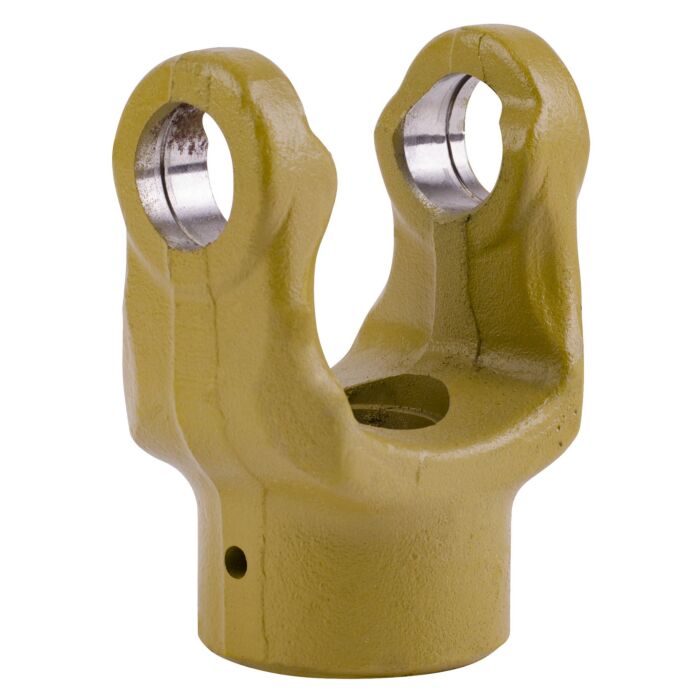

Weasler Shear Pin Yokes are engineered with a compact, efficient design that disconnects the power source from the drivetrain during an overload. This helps prevent heat generation and damaging torque spikes. The Yoke features a pin that extends through the yoke and spins if broken during operation; once the operator replaces the bolt, the machine can be restarted.
- Inner Diameter: 1-3/8"
- Style: Italian & German
- Fits: # 4 & 2300 Series
| Brand | Weasler |
|---|---|
| UPC | 728357301082 |
| Store Location (Lititz, PA) | Aisle 08, Section W4 |
| Package Length (in) | 5.00" |
| Package Width (in) | 2.00" |
| Package Height (in) | 4.40" |
| Manufacturer Part Number | 802-8435 |
| Length | 3.74" |
| Height | 3.82" |
| Width | 2.36" |
| Weight | 2.74 lb |
| Series | AB4, AW21 |
| Bore | 1.378" |
| Bore Description | ROUND |
| Connection 1 Description | PIN |
| Connection 2 Description | (1) 1/2 Grade 2 |
| Torque | 25600 in-lb |
| Pin Hole Diameter | 0.51" |
| Bearing Diameter | 1.063" |
| Bearing Span | 2.933" |
| Horsepower at 540 RPM | 45 hp |
| Horsepower at 1000 RPM | 70 hp |
| Inner Diameter | 1-3/8" |
| Style | Italian & German |
| Fits | # 4 & 2300 Series |
