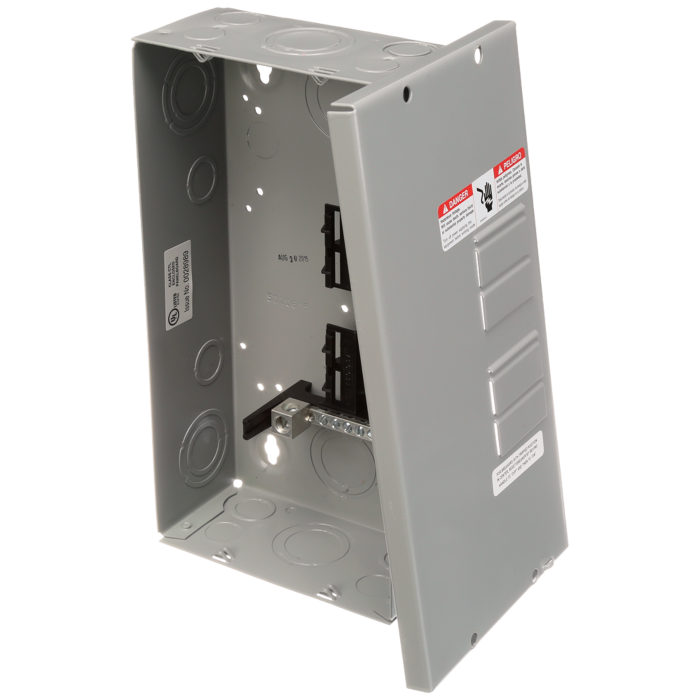

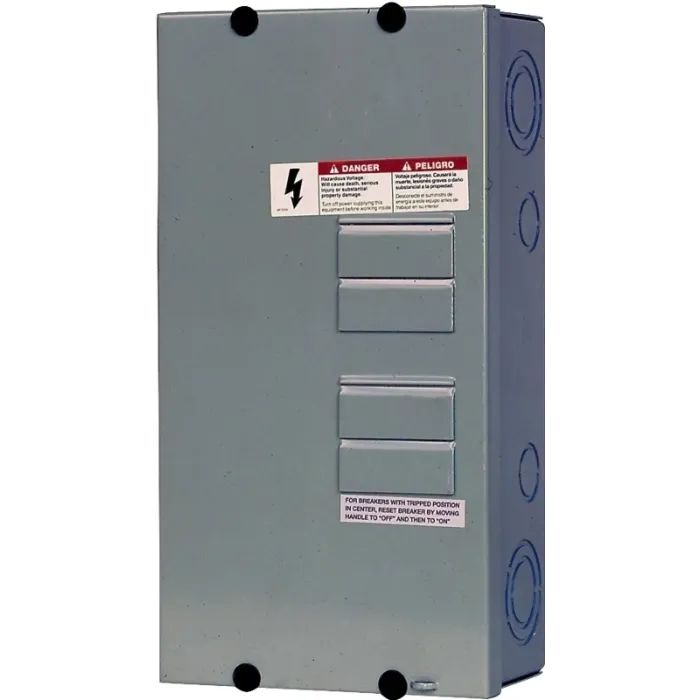

Murray E E0408ML1125SU Load Center, 125 A, 4 -Space, 8 -Circuit, Main Lug, NEMA 1 Enclosure, Gray
SKU: SE0408ML1125S
$39.99
Features
Specifications
Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 4 spaces and 8 circuits maximum 1-pole, 2 QP breakers maximum 2-pole, 120/240 V. 10,000 AIR. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service equipment when a main breaker (100 A maximum) is back-fed in a branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. 6-5/8 in x 12-5/8 in x 3-1/2 in. UL listed, complies fully with NEC and UL requirements for Class CTL.
| Brand | Siemens |
|---|---|
| UPC | 783643322172 |
| Store Location (Lititz, PA) | Aisle 07, Section A3 |
| Package Length (in) | 7.00" |
| Package Width (in) | 18.50" |
| Package Height (in) | 13.00" |
| Manufacturer Part Number | E0408ML1125SU |
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Copper |
| Color | Gray |
| Cover/Lid Type | Flush |
| Current Rating | 125 A |
| Enclosure Type | NEMA 1 |
| Interrupt Rating | 100 kA |
| Mounting Type | Surface |
| Number of Circuits | 8 |
| Number of Phases | 1 |
| Number Of Spaces | 4 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
