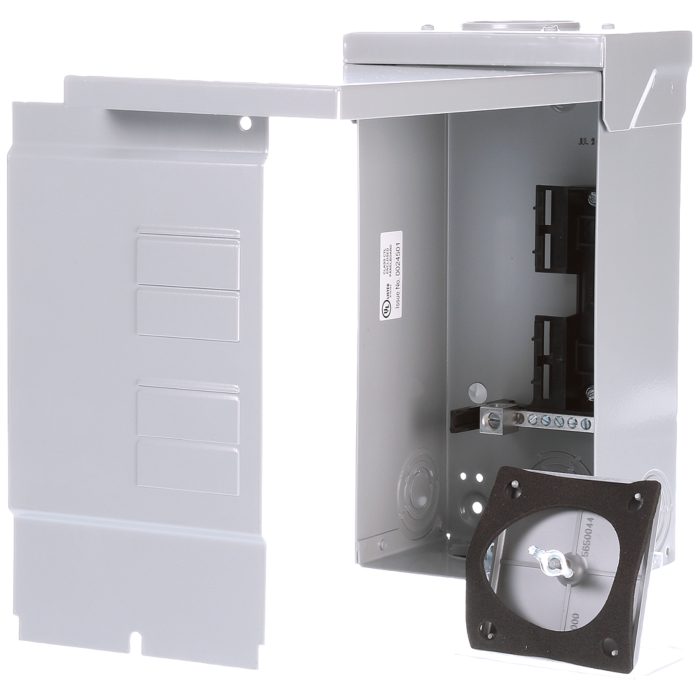

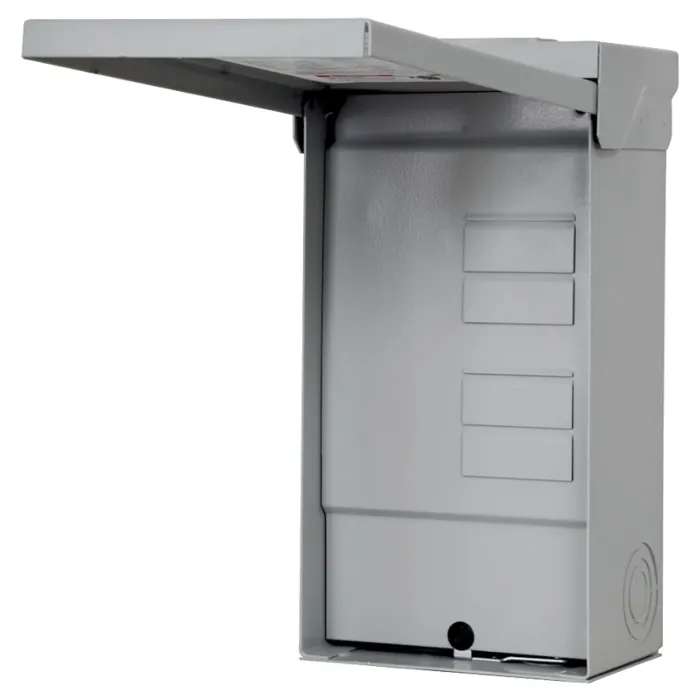

Murray EQ W0408ML1125U Load Center, 125 A, 4 -Space, 8 -Circuit, Main Lug, NEMA 3R Enclosure, Gray
SKU: SW0408ML1125
$64.99
Features
Specifications
Code-gauge steel enclosure. Single phase, 3-wire, solid neutral, 4 space/8 circuits 1-pole, 2 QP breakers 2-pole, 120/240 VAC. 10,000 AIR. With closure plates, HS-hubs sold separately. One piece plated aluminum bus bar. 100% circuit breaker twist outs. Positive load side circuit breaker hook rail. Suitable for use as service equipment when a main breaker (100 A maximum) is back-fed in a branch position and used with main breaker retainer clip No MBR1. When used as service equipment, any unused neutral position may be used for equipment grounding. Rotate entire device 180 deg for bottom feed. Gray enamel finish. CSA and UL listed, complies fully with NEC and UL requirements for Class CTL. 6 in x 12-1/4 in x 4-1/4 in.
| Brand | Siemens |
|---|---|
| UPC | 783643322196 |
| Store Location (Lititz, PA) | Aisle 07, Section A3 |
| Package Length (in) | 7.00" |
| Package Width (in) | 24.00" |
| Package Height (in) | 12.50" |
| Manufacturer Part Number | W0408ML1125 |
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Copper |
| Color | Gray |
| Cover/Lid Type | Flush |
| Current Rating | 125 A |
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 100 kA |
| Mounting Type | Surface |
| Number of Circuits | 8 |
| Number of Phases | 1 |
| Number Of Spaces | 4 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
