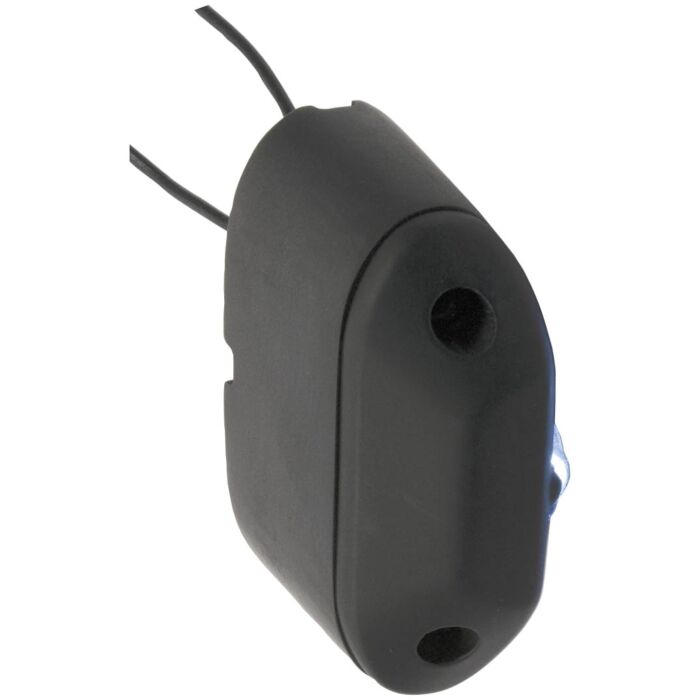

Single Diode 12V Side-Mount License Light w/ .180 Bullet Terminals
SKU: 290CSMBT2
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$13.49
Features
Specifications
This Single Diode 12V License Light is a hardwired unit that surface-mounts on 2-inch centers. The single light is DOT-compliant when used properly with a spacer and features a variety of termination options. Different versions accommodate specific mounting needs: the 290C has a 0.95-inch spacer for top-mount use, the 290C-SM has a taller 1.60-inch spacer for side-mount use, and the 290B-P is permanently attached to a polymer plate bracket.
| Brand | Peterson |
|---|---|
| Date Added | Apr 21, 2026 |
| UPC | 044464995786 |
| Package Length (in) | 1.25" |
| Package Width (in) | 6.00" |
| Package Height (in) | 8.80" |
| Manufacturer Part Number | 290C-SM-BT2 |
| Bulb Technology | LED |
| Voltage | 12V / 24V |
| Mounting Type | Surface |
| Lens Color | Clear |
| Regulatory Compliance | DOT |
| Light Color | White |
| Shape | Oval |
| termination | .180 Bullet |
| Container Type | Poly Bag |
| Multi-Volt | Yes |
| Bulb/Diode Count | 1 |
| Minimum Voltage | 9 Volts |
| Maximum Voltage | 32 Volts |
| Height | 1.25" |
| Length | 3" |
| Mounting Centers | 2" |
| Width | 2.2" |
| Submersible | Yes |
