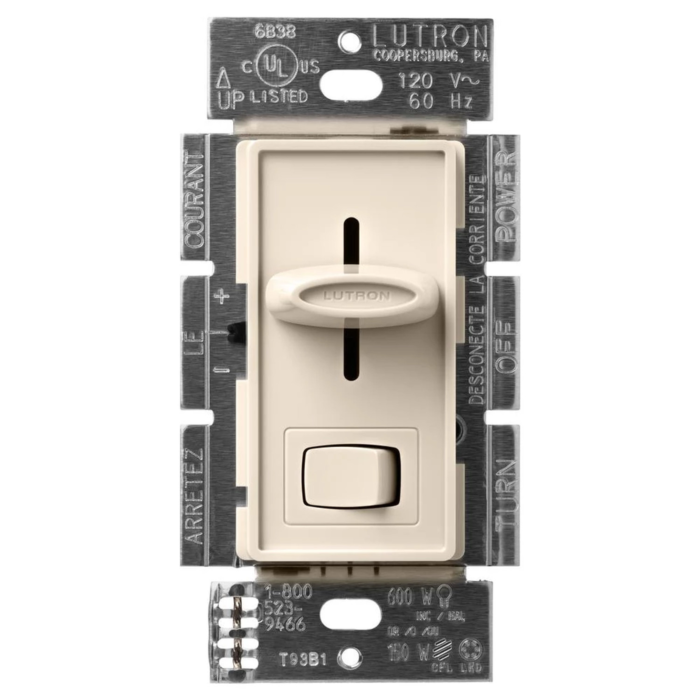

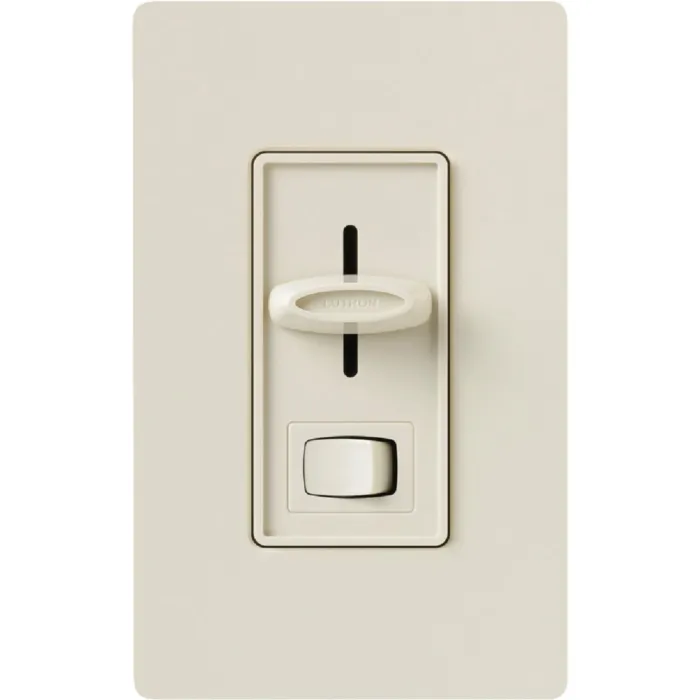

The Lutron Skylark LED+ dimmer switch includes the most advanced technology for superior dimming for up to 150W of dimmable LED or 600W of Incandescent/Halogen. The Skylark dimmer switch features a smooth, linear slider knob to dim or brighten the lights while the rocker switch turns lights ON/OFF. Set a favorite preset level with the slider before turning on. The Skylark also features an easy low-end trim adjustment directly on the dimmer which eliminates complicated programming or having to turn the power off. Available in 7 gloss colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
- Includes (1) Lutron Skylark LED+ Dimmer Switch; Gloss Finish, Clamshell Packaging
- Rated for up to 150W LED or 600W Incandescent/Halogen
- No Neutral Required; 120V
- Single Pole or 3-Way compatible; Wire lead installation
- Minimum load requires 1 compatible LED or 10W Incandescent/Halogen
- Easy low-end trim adjustment lever; No complicated programming or turning off power to set
- Rocker switch turns lights on/off to favorite preset light level
- Linear slider knob dims and brightens the lights
- Available in 7 Gloss colors
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
- Controls 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Rocker switch returns light to light level indicated by slider
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
- UL
- CSA
- NOM
Brand | Lutron |
---|---|
UPC | 784276008884 |
Store Location (Lititz, PA) | Aisle 09, Section D2 |
Package Length (in) | 5.00" |
Package Width (in) | 3.40" |
Package Height (in) | 2.00" |
Manufacturer Part Number | SCL-153PH-LA |
Application | Lighting Control |
Environmental Conditions | Indoor use only |
Frequency Rating, Maximum | 60.000000000000000 Hz |
Number of Poles | 1 |
Type | Dimmer with on/off switch, 3-way/single-pole, clamshell packaging |
Voltage Rating | 120 |
Wattage | 600.000000000000000 W |
Actuator | Rocker/Slide |
Color | Light Almond |
Connection | Wire Leads |
Enclosure | Plastic |
Insulation | Plastic |
Material | Plastic/Metal |
Mounting | Wallbox |
Operating Temperature | 32 to 104 F |
Size | 4.69 x 2.94 in |
