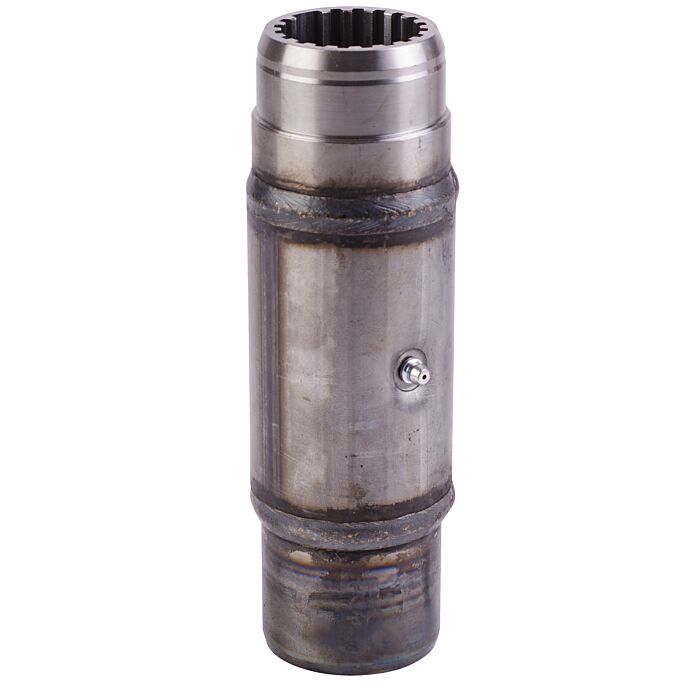

6 Series Slip Sleeve, for 1" - 15 Spline Shaft
SKU: 5100615
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$67.98
Features
Specifications
Slip sleeves provide a strong connection between the inner and outer shaft. Heavy construction gives superior strength, while the grease zerk allows for easy greasing to reduce friction and wear on telescoping shaft.
- Series: 6
- Inner Diameter: 1" -15 spline
- Outer Diameter: 1-1/2" Tubing
- Length: 3"
| Brand | Weasler |
|---|---|
| UPC | 728357108018 |
| Store Location (Lititz, PA) | Aisle 08, Section W1 |
| Package Length (in) | 3.20" |
| Package Width (in) | 1.40" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | 510-0615 |
| Length | 3 inch |
| Weight | 1 lb |
| Series | 6 |
| Outside Diameter | 1.5" |
| Bore | 1" |
| Bore Description | 1-15 SPLINE |
| Connection 1 Description | TELESCOPING |
| Connection 2 Description | WELD |
| Bearing Diameter | 0.969" |
| Bearing Span | 2.295" |
| Horsepower at 540 RPM | 19 hp |
| Horsepower at 1000 RPM | 35 hp |
