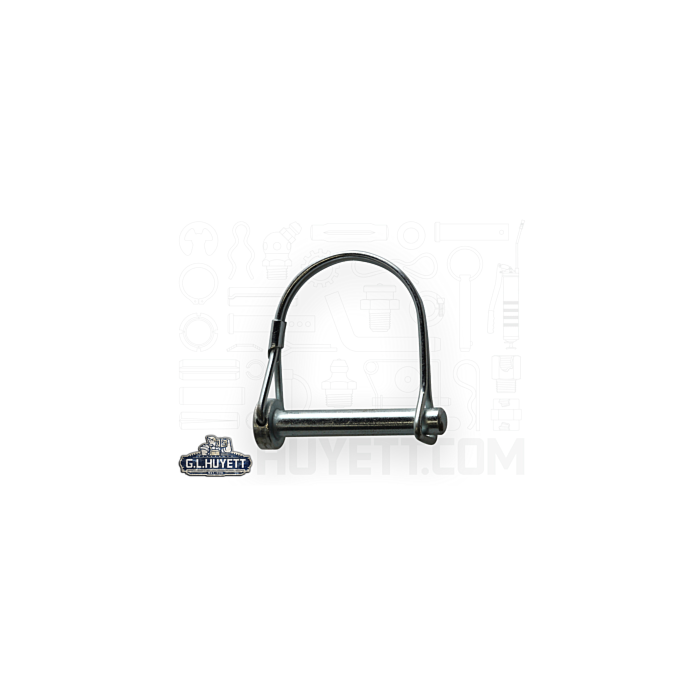

Snap Pin Round

Snap Pin Round Two Wire 1/4" x 2-1/2" Low Carbon Steel Zinc Clear

Snap Pin Round Two Wire 1/4" x 1-3/8" Low Carbon Steel Zinc Clear

Snap Pin Round Two Wire 3/8" x 2-1/2" Low Carbon Steel Zinc Clear

Snap Pin Round Two Wire 5/16" x 2-1/4" Low Carbon Steel Zinc Clear

Snap Pin Round Two Wire 3/8" x 1-3/8" Low Carbon Steel Zinc Clear

Snap Pin Round Two Wire 1/4" x 1-3/4" Low Carbon Steel Zinc Clear

Snap Pin Round Two Wire 5/16" x 1-3/8" Low Carbon Steel Zinc Clear

SKU: 261-
SKU: 00264X
SKU: 00262X
SKU: 00265X
SKU: 00266X
SKU: 00260X
SKU: 00261X
SKU: 00277X
Select options to see availability
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down

Options

Features chevron-down chevron-up
Snap Pin Round Two Wire 1/4" x 2-1/2" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 1/4" x 2-1/2" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 1/4" x 1-3/8" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 3/8" x 2-1/2" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 5/16" x 2-1/4" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 3/8" x 1-3/8" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 1/4" x 1-3/4" Low Carbon Steel Zinc Clear
Snap Pin Round Two Wire 5/16" x 1-3/8" Low Carbon Steel Zinc Clear
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 1.80"
Package Width (in) 0.40"
Package Height (in) 2.80"
Height 1.6250 in
Effective Length 2.5000 in
Effective Length Fraction 2-1/2 in
Height Fraction 1-5/8 in
Illustration PHL-SNAP-312-2250R-20170330
Inch or Metric Inch
Outside Diameter 0.2500 in
Outside Diameter Fraction 1/4 in
Outside Diameter Maximum 0.2480 in
Outside Diameter Minimum 0.2430 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 2.7500 in
Shank Length Fraction 2-3/4 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 1.80"
Package Width (in) 0.40"
Package Height (in) 2.80"
Height 1.6250 in
Effective Length 2.5000 in
Effective Length Fraction 2-1/2 in
Height Fraction 1-5/8 in
Illustration PHL-SNAP-312-2250R-20170330
Inch or Metric Inch
Outside Diameter 0.2500 in
Outside Diameter Fraction 1/4 in
Outside Diameter Maximum 0.2480 in
Outside Diameter Minimum 0.2430 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 2.7500 in
Shank Length Fraction 2-3/4 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 0.75"
Package Width (in) 2.00"
Package Height (in) 2.25"
Height 1.6250 in
Effective Length 1.3750 in
Effective Length Fraction 1-3/8 in
Height Fraction 1-5/8 in
Illustration PHL-SNAP-250-1375R-20170330
Inch or Metric Inch
Outside Diameter 0.2500 in
Outside Diameter Fraction 1/4 in
Outside Diameter Maximum 0.2480 in
Outside Diameter Minimum 0.2430 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 1.6250 in
Shank Length Fraction 1-5/8 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 2.80"
Package Width (in) 2.40"
Package Height (in) 0.20"
Height 1.5000 in
Effective Length 2.5000 in
Effective Length Fraction 2-1/2 in
Height Fraction 1-1/2 in
Illustration PHL-SNAP-375-2500R-20170330
Inch or Metric Inch
Outside Diameter 0.3750 in
Outside Diameter Fraction 3/8 in
Outside Diameter Maximum 0.3730 in
Outside Diameter Minimum 0.3680 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 2.7500 in
Shank Length Fraction 2-3/4 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 0.75"
Package Width (in) 2.00"
Package Height (in) 2.75"
Height 1.7500 in
Effective Length 2.2500 in
Effective Length Fraction 2-1/4 in
Height Fraction 1-3/4 in
Illustration PHL-SNAP-312-2250R-20170330
Inch or Metric Inch
Outside Diameter 0.3130 in
Outside Diameter Fraction 5/16 in
Outside Diameter Maximum 0.3110 in
Outside Diameter Minimum 0.3060 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 2.5000 in
Shank Length Fraction 2-1/2 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 1.40"
Package Width (in) 0.60"
Package Height (in) 0.20"
Height 1.5"
Effective Length 1.3750 in
Effective Length Fraction 1-3/8 in
Height Fraction 1-1/2 in
Illustration PHL-SNAP-312-1750R-20170330
Inch or Metric Inch
Outside Diameter 0.3750 in
Outside Diameter Fraction 3/8 in
Outside Diameter Maximum 0.3730 in
Outside Diameter Minimum 0.3680 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 1.6250 in
Shank Length Fraction 1-5/8 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 2.00"
Package Width (in) 1.20"
Package Height (in) 0.20"
Height 1.6250 in
Effective Length 1.7500 in
Effective Length Fraction 1-3/4 in
Height Fraction 1-5/8 in
Illustration PHL-SNAP-250-1750R-20170330
Inch or Metric Inch
Outside Diameter 0.2500 in
Outside Diameter Fraction 1/4 in
Outside Diameter Maximum 0.2480 in
Outside Diameter Minimum 0.2430 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 2.0000 in
Shank Length Fraction 2 in
Type (Snap Pins) Round Two Wire Snap Pin
Store Location (Lititz, PA) Aisle 10, Section T3
Package Length (in) 1.60"
Package Width (in) 0.40"
Package Height (in) 2.00"
Height 1.7500 in
Effective Length 1.3750 in
Effective Length Fraction 1-3/8 in
Height Fraction 1-3/4 in
Illustration PHL-SNAP-312-1750R-20170330
Inch or Metric Inch
Outside Diameter 0.3130 in
Outside Diameter Fraction 5/16 in
Outside Diameter Maximum 0.3110 in
Outside Diameter Minimum 0.3060 in
Finish (Pins) Zinc Clear
Material (Pins) Low Carbon Steel
Shank Length 1.6250 in
Shank Length Fraction 1-5/8 in
Type (Snap Pins) Round Two Wire Snap Pin
