Carbon Spring Steel Phosphate External Rotor Clip Snap Ring - 15/16 in.
SKU: SRE1516
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$0.59
Features
Specifications

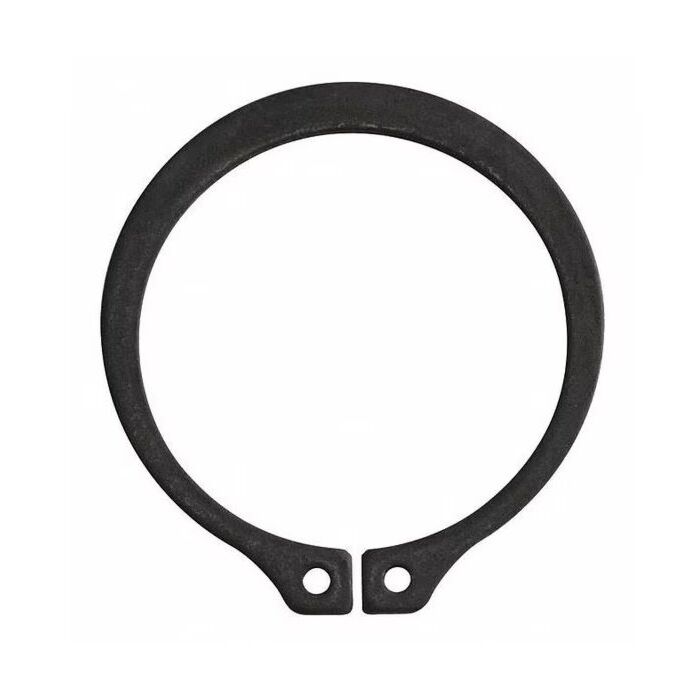

Rotor Clip Snap Ring External 15/16" Carbon Spring Steel Phosphate
| Package Length (in) | 0.90" |
|---|---|
| Package Width (in) | 0.90" |
| Package Height (in) | 0.90" |
| Allowable Corner Chamfers | 0.0330" |
| Allowable Corner Radii | 0.0550" |
| Clearance Diameter Expanded Over Shaft | 1.3400" |
| Clearance Diameter Released in Groove | 1.2900 in |
| Duty | Standard Duty |
| Edge Margin | 0.0840" |
| Free Diameter | 0.8670" |
| Free Diameter Tolerance | +.005/-.010 |
| Groove Depth | 0.0300" |
| Groove Diameter | 0.8820" |
| Groove Diameter to Shaft Concentricity | 0.0040" |
| Groove Width | 0.0460" |
| Hardness | HRC 47-53 |
| Hole Diameter | 0.0780" |
| Hole Diameter Tolerance | +.015/-.002 |
| Illustration | PHL-SH |
| Inch or Metric | "ch |
| Lug Height | 0.1660" |
| Lug Height Tolerance | ±.004 |
| Maximum Section | 0.1100" |
| Maximum Section Tolerance | ±.005 |
| Maximum Thrust Load | 1340.0000 Pound-Force |
| Minimum Section | 0.0630" |
| Minimum Section Tolerance | ±.005 |
| RPM Limits | 21500 rpm |
| Shaft Diameter | 0.9380" |
| Shaft Diameter Fraction | 15/16" |
| Finish (Snap Rings) | Phosphate |
| Material (Snap Rings) | Carbon Spring Steel |
| Type (Snap Rings) | Snap Rings External |
| Style | Stamped |
| Thickness | 0.0420" |
| Thickness Tolerance | ±.002 |
| Clearance Diameter Released" Groove | 1.2900" |
