Rotor Clip Housing Ring Internal 2-3/8 Carbon Spring Steel Phosphate Rings on Wire

SKU: SRI2375
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store 7 in stock
This product must be picked up in-store.
Features chevron-down chevron-up

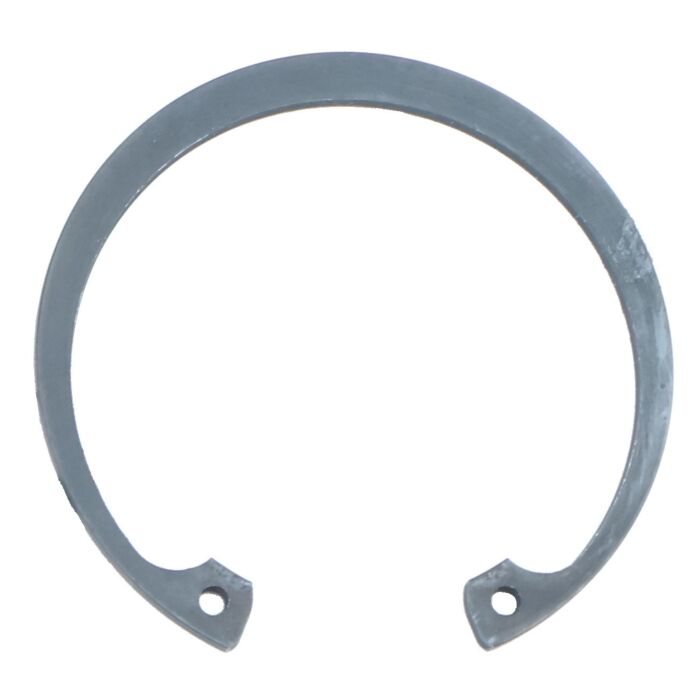

Rotor Clip Housing Ring Internal 2-3/8 Carbon Spring Steel Phosphate Rings on Wire
Specifications chevron-down chevron-up
Store Location (Lititz, PA) Aisle 10, Section W4
Allowable Corner Chamfers 0.0620 in
Allowable Corner Radii 0.0780 in
Clearance Diameter Compressed in Housing 1.7900 in
Clearance Diameter Released in Groove 1.8600 in
Edge Margin 0.2130 in
Free Diameter 2.6300 in
Free Diameter Tolerance +.040/-.030
Gap Width Minimum 0.5040 in
Groove Depth 0.0710 in
Groove Diameter 2.5170 in
Groove Diameter to Shaft Concentricity 0.0060 in
Groove Width 0.0860 in
Hardness HRc 47-52
Hole Diameter 0.0930 in
Hole Diameter Tolerance +.015/-.002
Housing Diameter 2.3750 in
Housing Diameter Fraction 2-3/8 in
Illustration PHL-HO-200-20171024
Inch or Metric Inch
Lug Height 0.2800 in
Lug Height Tolerance ±.005
Maximum Section 0.2070 in
Maximum Section Tolerance ±.007
Maximum Thrust Load 6200.0000 Pound-Force
Minimum Section 0.1020 in
Minimum Section Tolerance ±.007
Finish (Rings and Collars) Phosphate
Material (Rings and Collars) Carbon Spring Steel
Type (Rings and Collars) Internal
Style Stamped
Thickness 0.0780 in
Thickness Tolerance ±.003
