Texas Industrial Remcor

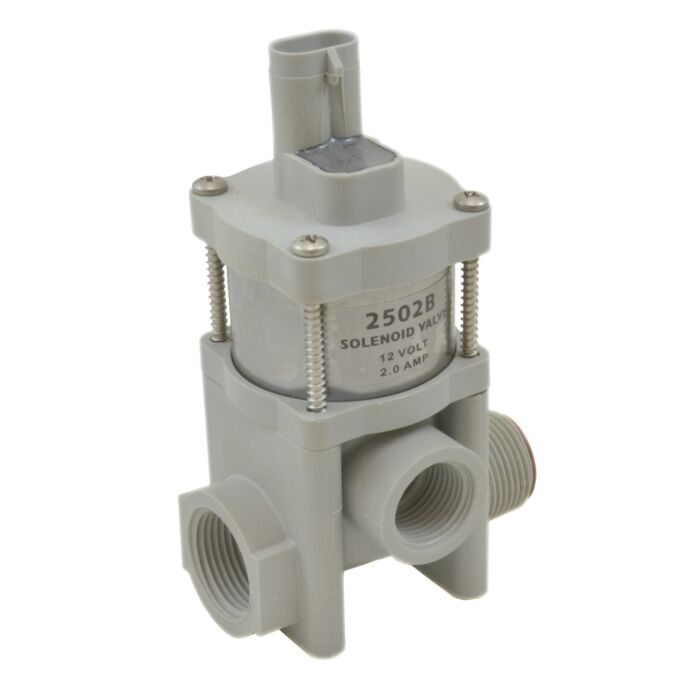

12V Solenoid Valve 175PSI, 8gpm, 3/4 WP
SKU: 2502B1WP
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$154.99
Features
Specifications
Solenoid Valve, 2-Way Direct Operating, High Flow, 0.75 in Nominal, FNPT Bypass x MNPT Bypass, 175 psi, 0-8 gpm, Glass Filled Nylon 6/6 Body, Viton Seat, Viton Seal, 12 VDC, 2 A, Weather- Pack 2 Pin Shroud Power Connection Type, 5 psi at 8 Gpm Pressure Drop, 3.6 CV Rating
| Brand | Texas Industrial Remcor |
|---|---|
| UPC | 737512925025 |
| Store Location (Lititz, PA) | Aisle 08, Section T2 |
| Package Length (in) | 4.60" |
| Package Width (in) | 3.80" |
| Package Height (in) | 2.80" |
| Manufacturer Part Number | SV.2502B.1.WP |
| Type | 2-Way Direct Operating, High Flow |
| Nominal Size | 0.75 in |
| Connection Type | FNPT Bypass x MNPT Bypass |
| Pressure Rating | 175 psi |
| Flow Rate | 0-8 gpm |
| Body Material | Glass Filled Nylon 6/6 |
| Seat Material | Viton |
| Seal Material | Viton |
| Voltage Rating | 12 VDC |
| Amperage Rating | 2 A |
| Power Connection Type | Weather- Pack 2 Pin Shroud |
| Pressure Drop | 5 psi at 8 Gpm |
| CV Rating | 3.6 |
