Texas Industrial Remcor

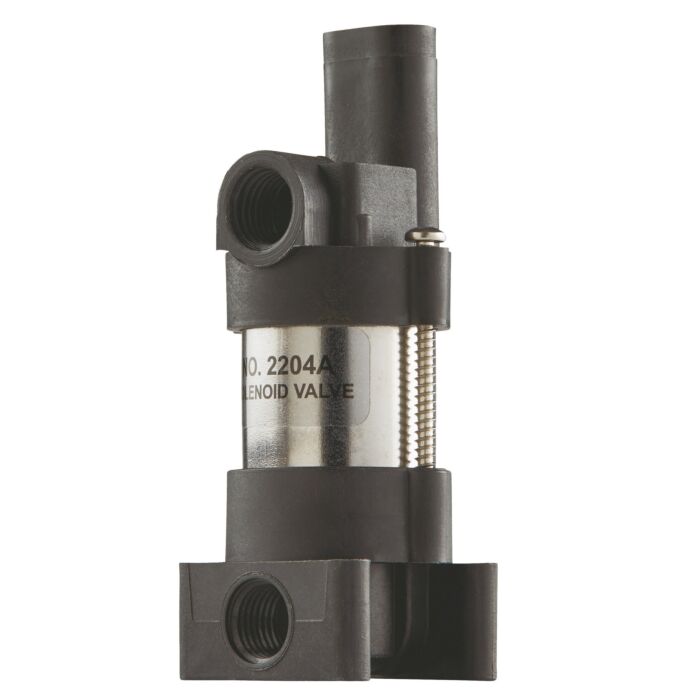

0.25 in FNPT Connection Type 55 psi 3-Way Direct Operating, Low Flow Solenoid Valve
SKU: 2204AWP
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$114.99
Features
Specifications
Solenoid Valve, 3-Way Direct Operating, Low Flow, 0.25 in Nominal, FNPT, 55 psi, 0-0.5 gpm, Glass Filled Nylon 6/6 Body, Viton Seat, Viton Seal, 12 VDC, 0.85 A, Weather- Pack 2 Pin Shroud Power Connection Type, 5 psi at 1 Gpm Pressure Drop, 0.22 CV Rating
| Brand | Texas Industrial Remcor |
|---|---|
| UPC | 737512922048 |
| Store Location (Lititz, PA) | Aisle 08, Section T1 |
| Package Length (in) | 4.20" |
| Package Width (in) | 1.60" |
| Package Height (in) | 1.20" |
| Manufacturer Part Number | SV.2204A.WP |
| Type | 3-Way Direct Operating, Low Flow |
| Nominal Size | 0.25 in |
| Connection Type | FNPT |
| Pressure Rating | 55 psi |
| Flow Rate | 0-0.5 gpm |
| Body Material | Glass Filled Nylon 6/6 |
| Seat Material | Viton |
| Seal Material | Viton |
| Voltage Rating | 12 VDC |
| Amperage Rating | 0.85 A |
| Power Connection Type | Weather- Pack 2 Pin Shroud |
| Pressure Drop | 5 psi at 1 Gpm |
| CV Rating | 0.22 |
