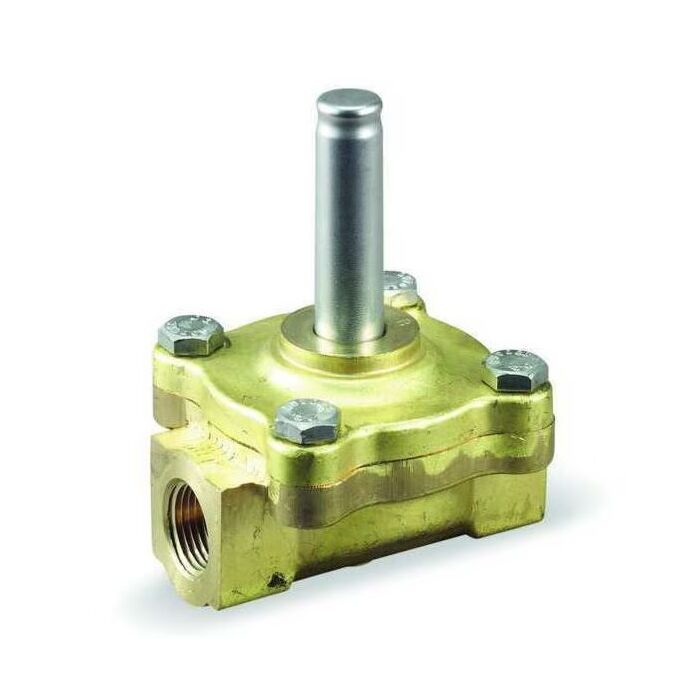

3/4 in Normally Closed 125 psi Solenoid Less Valve Coil
SKU: 1A578
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$139.99
Features
Specifications
These valves are used for automatic control of media such as air, inert gas, water, light oil and other noncorrosive liquids. Typical applications include instrumentation, vending machines, dental equipment, humidifiers, welding equipment and water treatment. They're rated for continuous duty and can be mounted in any position.
| Store Location (Lititz, PA) | Aisle 08, Section I3 |
|---|---|
| Package Length (in) | 4.60" |
| Package Width (in) | 2.40" |
| Package Height (in) | 6.60" |
| Nominal Size | 3/4 in |
| Configuration | Normally Closed |
| Pressure Rating | 125 psi |
| Flow Rate | 12.3 to 61.5 gpm |
| Media | Air/Steam/Water |
| Actuator Type | Pilot Operated |
| Orifice Size | 3/4 in |
| Coil Insulation Class | Class F |
| Number of Ports/Ways | 2 |
| Body Material | Brass |
| Seal Material | Buna-N |
