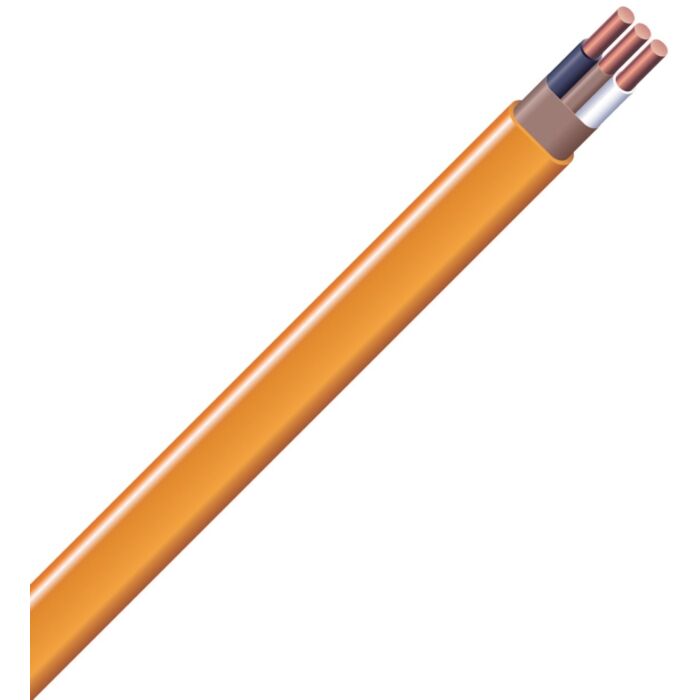

Romex 10/2 NM-B Electrical Wire - 1000 ft
SKU: 102NM1000
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$1,149.99
/ Roll
/ Roll
Features
Specifications
Southwire® Romex® Brand SIMpull ®® NM-B (nonmetallic-sheathed) cable may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 60°C conductors) as specified in the National Electrical Code. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations. Voltage rating for NM-B cable is 600 volts.
| Brand | Southwire |
|---|---|
| Store Location (Lititz, PA) | Aisle 06, Section C6 |
| Manufacturer Part Number | 63948501 |
| Conductor Insulation | PVC |
| Conductor Material | Copper |
| Current Rating | 30 A |
| Number of Conductors | 2 |
| Operating Temperature | 90 deg C |
| Sheath Color | Orange |
| Sheath Material | Nylon |
| Strands per Conductor | 1 |
| Type | NM-B |
| Voltage Rating | 600 V |
| Wire Size | 10 AWG |
| Length | 1,000 ft |
