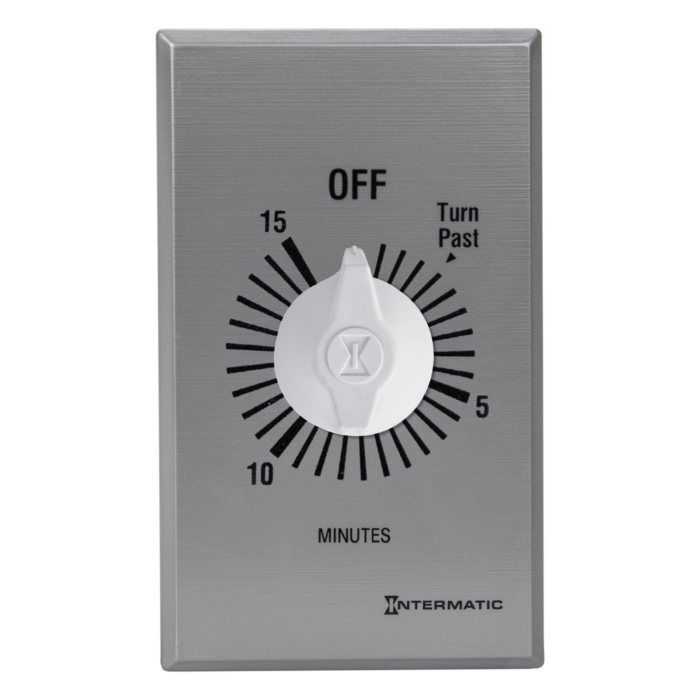

Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, DPST, 15 Minute Max, Without Hold, Silver
SKU: FF415M | Location: Aisle 05, Section D3
$64.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Downloads
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- 15-Minute timer
- DPST (Double-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Brushed metal look switch plate meets NEC requirements (plate is included)
- Incandescent/fluorescent/CFL/LED compatible
- Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Brand | Intermatic |
---|---|
UPC | 078275184343 |
Store Location (Lititz, PA) | Aisle 05, Section D3 |
Package Length (in) | 4.40" |
Package Width (in) | 1.80" |
Package Height (in) | 3.00" |
Manufacturer Part Number | FF415M |
Country of Origin | Tunisia |
Product Height | 4.125 in; 104.8 mm |
Product Depth | 1.25 in; 31.8 mm |
Operating Temperature Min | 40°F; 4°C |
Operating Temperature Max | 120°F; 49°C |
Warranty Period | 1-Year limited |
In Wall Wiring Configurations | Single |
Operation Mode | Countdown |
Color | Silver |
Applications | Indoor Lighting Control; Outdoor Lighting Control; Motor Control; Air Movement & Ventilation |
Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
Wall Plate Configuration | Single-Gang; Multi-Gang |
Input Voltage Ranges | 125-277 VAC, 50/60 Hz |
Countdown Time | 15 min |
Mechanism Type | Analog/Mechanical |
Switch Type | DPST |
Tungsten Incandescent | 7 A, 125 VAC, 50 Hz; 7 A, 125 VAC, 60 Hz; 875 W |
Hold Mode Included CVL | No |
Includes Wall Plate CVL | Yes |
Resistive Heater | 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC |
PDF Standards And Certifications | cCSAus; RU |
Tungsten Incandescent Ranges | 7 A, 125 VAC, 50/60 Hz, 875 W |
Motor Load Ratings Ranges | 1 HP, 125 VAC; 2 HP, 250 VAC |
CSA Certification | cCSAus |
Other Certifications | RU |
