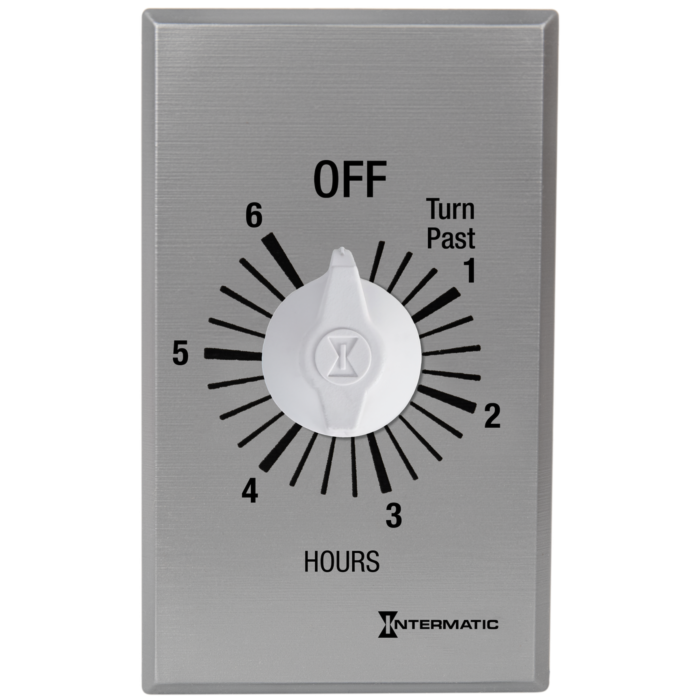

Spring Wound Countdown Timer, Commercial, 125-277 VAC, 50/60 Hz, SPST, 6 Hour Max, Without Hold, Silver
SKU: FF6H | Location: Aisle 05, Section D3
$44.99
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
4 In stock
Features
Specifications
Downloads
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- 6-Hour timer
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Brushed metal look switch plate meets NEC requirements (plate is included)
- Incandescent/fluorescent/CFL/LED compatible
- Please see the Warning @ www.P65Warnings.ca.gov - DEHP
| Brand | Intermatic |
|---|---|
| UPC | 078275184183 |
| Store Location (Lititz, PA) | Aisle 05, Section D3 |
| Package Length (in) | 4.20" |
| Package Width (in) | 2.00" |
| Package Height (in) | 3.00" |
| Manufacturer Part Number | FF6H |
| Country of Origin | Tunisia |
| Product Height | 4.125 in; 104.8 mm |
| Product Depth | 1.25 in; 31.8 mm |
| Operating Temperature Min | 32°F |
| Operating Temperature Max | 104°F; 40°C |
| Warranty Period | 1-Year limited |
| In Wall Wiring Configurations | Single |
| Operation Mode | Countdown |
| Color | Silver |
| Applications | Indoor Lighting Control; Outdoor Lighting Control; Motor Control; Air Movement & Ventilation |
| Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
| Wall Plate Configuration | Single-Gang; Multi-Gang |
| Input Voltage Ranges | 125-277 VAC, 50/60 Hz |
| Countdown Time | 6 hrs |
| Mechanism Type | Analog/Mechanical |
| Switch Type | SPST |
| Tungsten Incandescent | 7 A, 125 VAC, 50 Hz; 7 A, 125 VAC, 60 Hz; 875 W |
| Hold Mode Included CVL | No |
| Includes Wall Plate CVL | Yes |
| Resistive Heater | 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC |
| PDF Standards And Certifications | cCSAus; cRUus |
| Tungsten Incandescent Ranges | 7 A, 125 VAC, 50/60 Hz, 875 W |
| CSA Certification | cCSAus |
| Other Certifications | cRUus |
| Motor Load Ratings Ranges | 1 HP, 125 VAC; 2 HP, 250 VAC |
