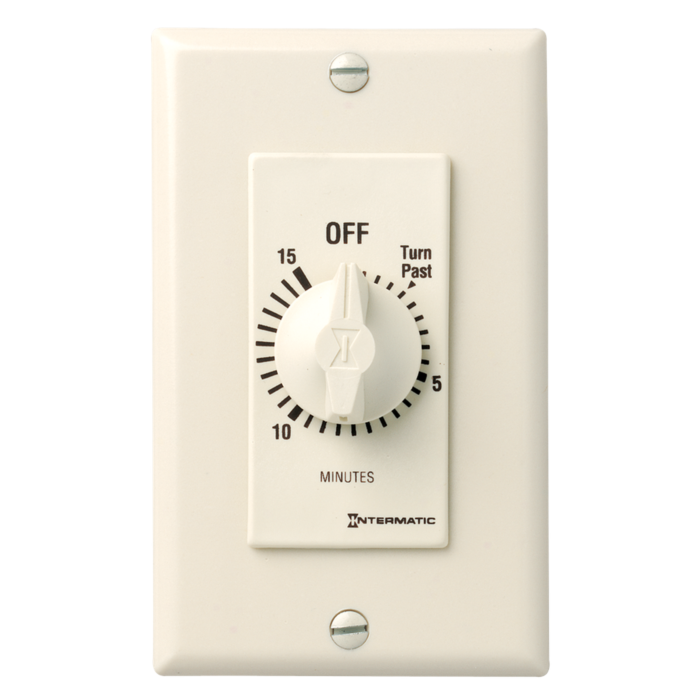

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- Please see the Warning @ www.P65Warnings.ca.gov - DEHP
- 15-Minute timer
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
- Decorator switch plate not included
Brand | Intermatic |
---|---|
UPC | 078275072916 |
Store Location (Lititz, PA) | Aisle 05, Section D3 |
Package Length (in) | 4.40" |
Package Width (in) | 1.80" |
Package Height (in) | 3.00" |
Manufacturer Part Number | FD15MAC |
Motor Load Ratings Ranges | 1 HP, 125 VAC; 2 HP, 250 VAC |
Country of Origin | Tunisia |
Product Height | 4.125 in; 104.8 mm |
Product Depth | 1.25 in; 31.8 mm |
Operating Temperature Min | 40°F; 4°C |
Operating Temperature Max | 120°F; 49°C |
Warranty Period | 1-Year limited |
In Wall Wiring Configurations | Single |
Operation Mode | Countdown |
Color | Light Almond |
Applications | Indoor Lighting Control; Outdoor Lighting Control; Motor Control; Air Movement & Ventilation |
Application Compatibilities | Incandescent; Fluorescent; CFL; LED |
Wall Plate Configuration | Single-Gang; Multi-Gang |
Input Voltage Ranges | 125-277 VAC, 50/60 Hz |
Countdown Time | 15 min |
Mechanism Type | Analog/Mechanical |
Switch Type | SPST |
Tungsten Incandescent | 7 A, 125 VAC, 50 Hz; 7 A, 125 VAC, 60 Hz; 875 W |
Hold Mode Included CVL | No |
Resistive Heater | 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC |
PDF Standards And Certifications | cCSAus; RU |
Tungsten Incandescent Ranges | 7 A, 125 VAC, 50/60 Hz, 875 W |
CSA Certification | cCSAus |
Other Certifications | RU |
