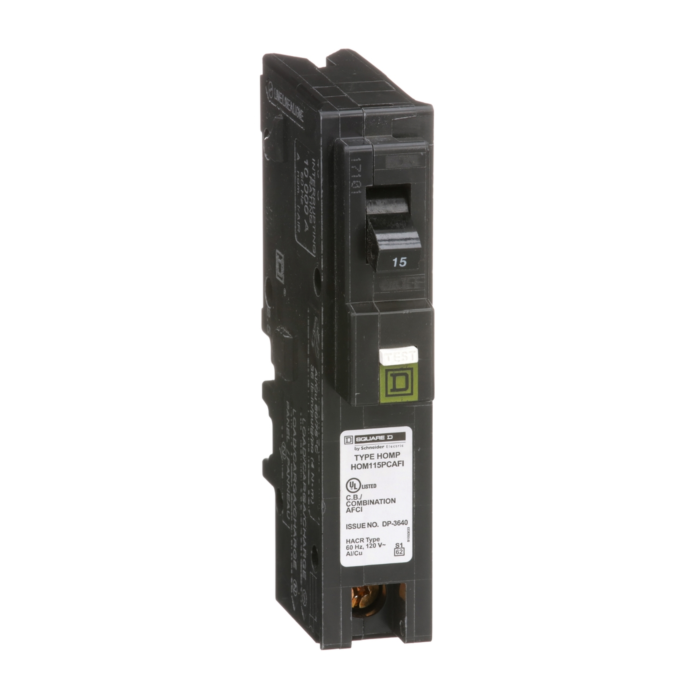

![Square D Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL [TAA]](https://paulbhardware.com/media/catalog/product/cache/306be0ea33a9bd9853274cfca8a93169/E/H/EHOM115PCAFIC-95a412c437a3f810d20224c130ddc919png.png "Square D Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL [TAA]")
Mini circuit breaker, Homeline, 15A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL [TAA]
SKU: EHOM115PCAFIC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$67.99
Features
Specifications
Downloads
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Brand | Square D |
|---|---|
| UPC | 785901978787 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 1.30" |
| Package Width (in) | 4.50" |
| Package Height (in) | 8.00" |
| Manufacturer Part Number | HOM115PCAFIC |
| Product Certifications | UL Listed |
| Line Rated Current | 15 A |
| Ue Rated Operational Voltage | 120 V AC |
| Persona Type Ids | EU, EUA, SC |
| Persona Type Names | End User, Consumer, Electrician |
| Carbon Footprint Of The Distribution Phase A4 | 0.0693053453, 0.1 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.0560736157 |
| Carbon Footprint Of The Installation Phase A5 | 0.0018911618, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 2.1002431153 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 37 kg CO2 eq., 37.375 |
| Local Data Status | Publishable |
| Local Publishable Date | 2025-11-19 |
| Global Commercial Status | Commercialised |
| Return Indicator | Y |
| Stocking Flag | N |
| Stock Policy | 2 |
| H And D Domain | Safety |
| H And D Subrange | RESI |
| H And D Enrichment Assignment | yes |
| H And D Enrichment Function | AFCI |
| H And D Enrichment Class 3 | Arc-fault protection devices |
| H And D Enrichment Class 4 | CAFI |
| Device Type | LV equipment - Low voltage circuit breaker |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 15 year(s) |
| Use Carbon Footprint | 37.375 |
| Legacy Weee Scope | In |
| Weee Product Category | 5 |
| Scope Perimeter | Outside of Europe |
| Eoli Availability Display | Yes |
| End Of Life Doc Ref | ENVEOLI2212005 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope | Yes |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Conformity Date | 2532 |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Without Single Use Plastic | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Tier | 1 |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Market Segmentation Id | RESIDENTIAL |
| Market Segmentation | Residential |
| Product Kit Identifier | N |
| Awg Gauge | 1 x AWG 14...AWG 8 ( aluminium/copper ) |
| Circuit Breaker Application | HACR rated |
| Circuit Breaker Type | combination ARC-fault |
| Electrical Connection | screw clamp terminals |
| Energy Efficiency Optimized | False |
| Halogen Free Status | Halogen free product |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 1 |
| Poles Description | 1P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | Homeline |
| Returnability | Yes |
| Short Circuit Current | 10 kA |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
| Total Lifecycle Carbon Footprint | 40 kg CO2 eq. |
| Type Of Packing | clam packaging |
| Connections Terminals | plug-on neutral |
| Warranty In Months | 18 |
| Pep Code | ENVPEP2212005EN |
| Database Version | 2022-01 |
| Pep Verification Date | 2023-08-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Type Of Verification For The Pep | Independent external review |
| Data Source | extrapolated product |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional Unit Quantity | 1 |
| Functional Unit Unit | unit |
| Product Weight In G2 | 272.155 |
| Reference Lifetime In Y2 | 20 |
| Energy Model Manufacturing A1 A3 2 | Energy model used: Mexico |
| Energy Model Installation A5 2 | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model Use B6 2 | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model End Of Life C1 C4 2 | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Offer Owner Code | 190788 |
| Height Nominal | 3.13 in |
| Width Nominal | 1 in |
| Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2 | 455.05 |
| Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 2 | 5.7146 |
| Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 472.94 |
| Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 2 | 503.15 |
| Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 30.218 |
| Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 472.94 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2 | 30.218 |
| Air Pollution M3 Operational Energy Use B6 2 | 3173.9 |
| Water Pollution M3 Operational Energy Use B6 2 | 1842.6 |
| Global Warming Kg Equivalent Co2 Operational Energy Use B6 2 | 37.375 |
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
| Take Back | Nej |
| Halogene Performance | Halogen free product |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 39.6025132381 |
| Ambient Air Temperature For Operation | 40 °C |
| Circularity Profile | ENVEOLI2212005 |
| Environmental Disclosure | ENVPEP2212005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | No |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Warranty Period | Lifetime |
| Warranty | Lifetime |
| Compliance | TAA Compliant |
| Depth | 2.98 in |
