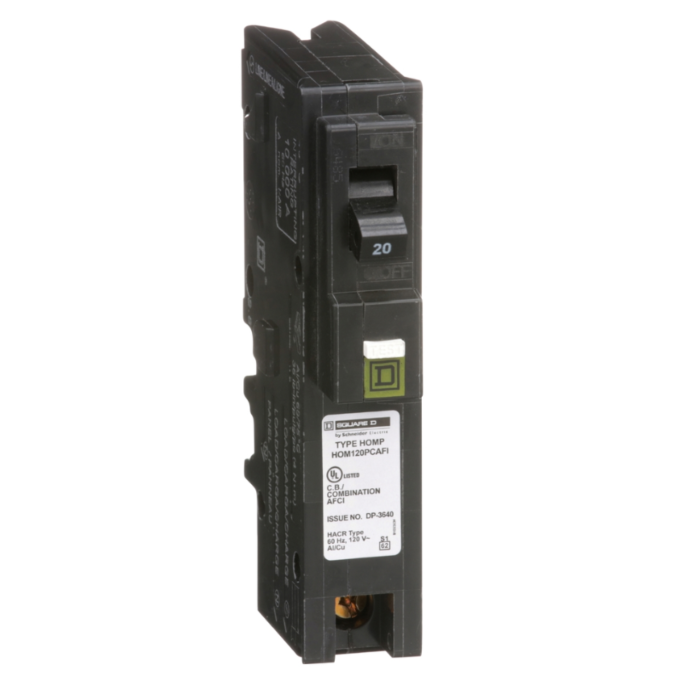

![Square D Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL [TAA]](https://paulbhardware.com/media/catalog/product/cache/306be0ea33a9bd9853274cfca8a93169/E/H/EHOM120PCAFIC-6fca59ccfe324584280b6d79f2cbf893png.png "Square D Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL [TAA]")
Mini circuit breaker, Homeline, 20A, 1 pole, 120VAC, 10kA AIR, combo arc fault, plug on neutral, plug in, UL [TAA]
SKU: EHOM120PCAFIC
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$67.99
Features
Specifications
Downloads
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a plug on neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. HOM Homeline miniature circuit breakers are UL Listed. Circuit breaker is consumer packaged.
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
| Brand | Square D |
|---|---|
| UPC | 785901976684 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 1.30" |
| Package Width (in) | 4.50" |
| Package Height (in) | 8.00" |
| Manufacturer Part Number | HOM120PCAFIC |
| UE Rated Operational Voltage | 120 V AC |
| Persona Type Ids | EU, EUA, SC |
| Persona Type Names | End User, Consumer, Electrician |
| AWG Gauge | 1 x AWG 14...AWG 8 ( aluminium/copper ), 2 x AWG 14...AWG 10 ( copper ) |
| Carbon Footprint Of The Distribution Phase A4 | 0.0727706762, 0.1 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.058877348 |
| Carbon Footprint Of The Installation Phase A5 | 0.0019857216, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 2.2052572004 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 37 kg CO2 eq., 37.375 |
| Local Data Status | Publishable |
| Local Publishable Date | 2025-11-19 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 15 year(s) |
| Legacy WEEE Scope | In |
| Scope Perimeter | Outside of Europe |
| EOLI Availability Display | Yes |
| End Of Life Doc Ref | ENVEOLI2212005 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| ROHS EUR In Scope | Yes |
| ROHS EUR Status | Compliant with Exemptions |
| ROHS EUR Full Compliance Status | Compliant with Exemptions |
| ROHS EUR Full Compliance Status Id | COMPLIANT_WITH_EXEMPTIONS |
| China ROHS In Scope | No |
| Green Premium Status For Reporting | Green Premium product |
| With Recycled Cardboard | No |
| Without Single Use Plastic | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Return Indicator | Y |
| WD Status | 1 - GSC certified |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Market Segmentation Id | RESIDENTIAL |
| Market Segmentation | Residential |
| H And D Domain | Safety |
| H And D Subrange | RESI |
| H And D Enrichment Assignment | yes |
| H And D Enrichment Function | AFCI |
| H And D Enrichment Class 3 | Arc-fault protection devices |
| H And D Enrichment Class 4 | CAFI |
| Circuit Breaker Type | combination ARC-fault |
| Energy Efficiency Optimized | False |
| Halogen Free Status | Halogen free product |
| Package Weight Lbs | 285.763 g |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | Homeline |
| Returnability | Yes |
| Sustainable Packaging | No |
| Tightening Torque | 4.0-4.0 N.m 2.5-6 mm² (AWG 14...AWG 8) |
| Total Lifecycle Carbon Footprint | 40 kg CO2 eq. |
| Type Of Packing | clam packaging |
| Relationship Type | Compatible relationship |
| Pep Code | ENVPEP2212005_V1 |
| Pep Verification Date | 2023-08-01 |
| PCR Version | PCR-ed3-EN-2015 04 02 |
| PSR Version | PSR-0005-ed2-EN-2016 03 29 |
| Type Of Verification For The Pep | Independent external review |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional Unit Unit | unit |
| Product Kit Identifier | N |
| EU ROHS Directive | Compliant By Exemptionâ, Compliant with Exemptions |
| ROHS Exemption Information | Yes |
| Take Back | No |
| Halogene Performance | Halogen free product |
| Recycled Metal Content At Cr Level | 0 % |
| China ROHS Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Mercury Free | Yes |
| Carbon Footprint | 39.7138909462 |
| Circularity Profile | ENVEOLI2212005 |
| Environmental Disclosure | ENVPEP2212005_V1 |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | No |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Warranty Period | Lifetime |
| Warranty | Lifetime |
| Compliance | TAA |
