Features
Specifications

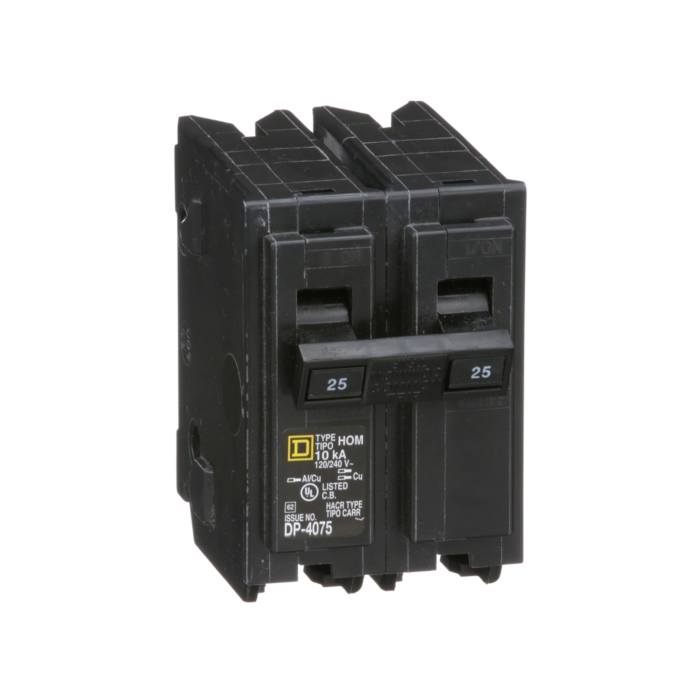

Homeline circuit breaker. Used for overload and short-circuit protection of electrical systems. Compatible with Homeline load centers and CSED devices. Rated for 120 volt/240 volt and 10,000 AIR. Designed exclusively for the residential market. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed.
Brand | Square D |
---|---|
Date Added | Mar 4, 2024 |
UPC | 047569071607 |
Store Location (Lititz, PA) | Aisle 08, Section D1 |
Package Length (in) | 2.40" |
Package Width (in) | 2.40" |
Package Height (in) | 1.80" |
Manufacturer Part Number | HOM225CP |
Amperage | 25 |
Number of Poles | 2 |
Interruption Type | Standard Trip |
Voltage | 120/240 |
Frame Size | 2-Space |
Width (In.) | 1 |
Mount Type | Plug-In |
Wire Size | #14-8 AWG |
Certification | ANSI/UL Listed |
