Brand | Schneider Electric |
---|---|
UPC | 785901052487 |
Store Location (Lititz, PA) | Aisle 08, Section I2 |
Package Length (in) | 4.00" |
Package Width (in) | 2.60" |
Package Height (in) | 2.60" |
Manufacturer Part Number | 9013FRG62J23 |

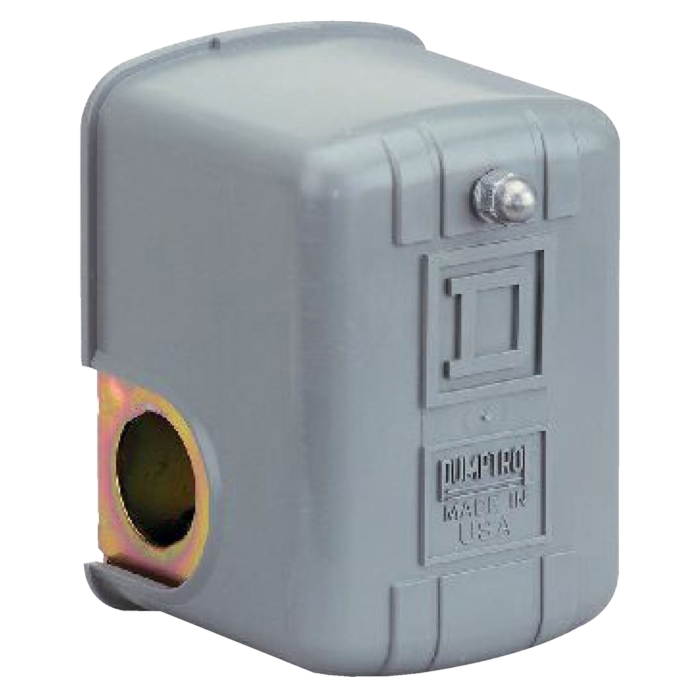

Range Of Product | Square D Pumptrol |
Type Of Packing | individual |
Pressure Sensor Name | 9013FR |
Value Of Setting | 40...20 psi |
Product Specific Application | control electrically driven water pumps |
Quantity Per Set | 1 |
Electrical Circuit Type | power circuit |
Pressure Sensor Size | 100 psi 40-100 psi) |
Warranty | 18 months |
Pressure Sensor Type | electromechanical pressure switch |
Pressure Actuator | diaphragm |
Materials In Contact With Fluid | zinc plated steel or equivalent flange || nitrile (Buna-N) or equivalent rubber diaphragm |
Height | 3.71 in |
Approximate Adjustable Differential | 20-30 psi |
Terminal Block Type | 4 terminals |
Terminals Description Iso N°1 | L2-T2 || L1-T1 |
Short-Circuit Protection | 20 A cartridge fuse gG |
Repeat Accuracy | +/- 3 % |
Pressure Switch Type Of Operation | regulation between 2 thresholds |
Maximum Operating Rate | 10 cyc/mn |
Contacts Type And Composition | 2 NO, snap action, DPST-DB, Form XX |
Adjustable Range On Rising Pressure | 20-80 psi |
Local Display | without |
Net Weight | 1 lb(US) |
Electrical Durability | 100000 cycles 10 cyc/mn |
Fluid Connection Type | 0.25 inch NPSF internal UL 508 |
Cable Entry Number | 2 0.88 in cable entries with 0.84 in across flats UL 508 |
Electrical Connection | screw-clamp terminals 10 AWG || screw-clamp terminals 5.261 mm² |
[Ui] Rated Insulation Voltage | 575 V UL 508 |
Controlled Fluid | fresh water -22-257 °F) |
Setting | internal |
Scale Type | adjustable differential |
Mechanical Durability | 300000 cycles |
Material | polypropylene Cover || noryl thermoplastic resin or equivalent Cover |
Operating Position | any position |
Width | 2.78 in |
Depth | 3.76 in |
Motor Power Kw | 0.75 kW 1 hp)115 V AC, 1 phase || 0.75 kW 1 hp)230 V AC, 1 phase || 0.75 kW 1 hp)115 V AC, 3 phase || 0.75 kW 1 hp)230 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.18 kW 0.25 hp)115 V DC || 0.18 kW 0.25 hp)230 V DC |
Destruction Pressure | 220 psi |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP111211EN |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Circularity Profile | ENVEOLI111210EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications | UL listed file E12158 || CSA file LR25490 |
Ambient Air Temperature For Operation | -33-257 °F |
Standards | NSF ANSI 61 Annex G || CE || UL 508 |
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Ambient Air Temperature For Storage | -33-257 °F |
Nema Degree Of Protection | NEMA 1 UL 50 |
Protective Treatment | none |
