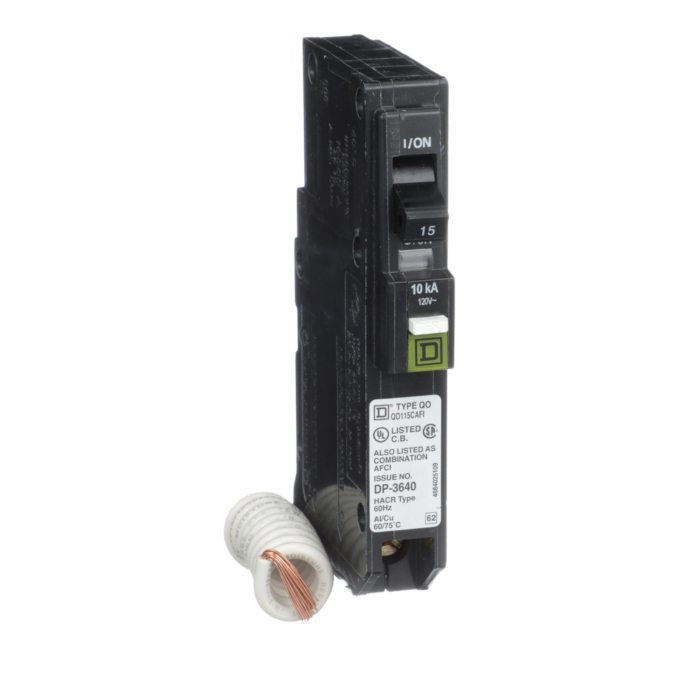

Brand | Square D |
---|---|
UPC | 785901610441 |
Store Location (Lititz, PA) | Aisle 08, Section D1 |
Package Length (in) | 4.80" |
Package Width (in) | 3.70" |
Package Height (in) | 6.90" |
Manufacturer Part Number | QO115CAFIC |
Width | 19 mm |
Height | 121 mm |
Weight | 0.295 kg |
Connections - Terminals | pigtail neutral |
Circuit Breaker Type | combination ARC-fault |
Range Of Product | QO |
Product Or Component Type | miniature circuit-breaker |
Type Of Packing | clam packaging |
Circuit Breaker Application | HACR rated |
Mounting Mode | plug-in |
Poles Description | 1P |
Electrical Connection | pressure plate |
Line Rated Current | 15 A |
[Ue] Rated Operational Voltage | 120 V AC |
Tightening Torque | 4-4 N.m |
Number Of Spaces Required | 1 |
Net Weight | 0.295 kg |
Breaking Capacity | 10 kA 120 V AC |
Awg Gauge | AWG 14...AWG 8 copper || AWG 12...AWG 8 aluminium |
Depth | 74 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2212005 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI2212005 |
Eu Rohs Directive | Compliant with Exemptions |
Product Certifications | UL Listed || CSA |
Ambient Air Temperature For Operation | 40 °C |
