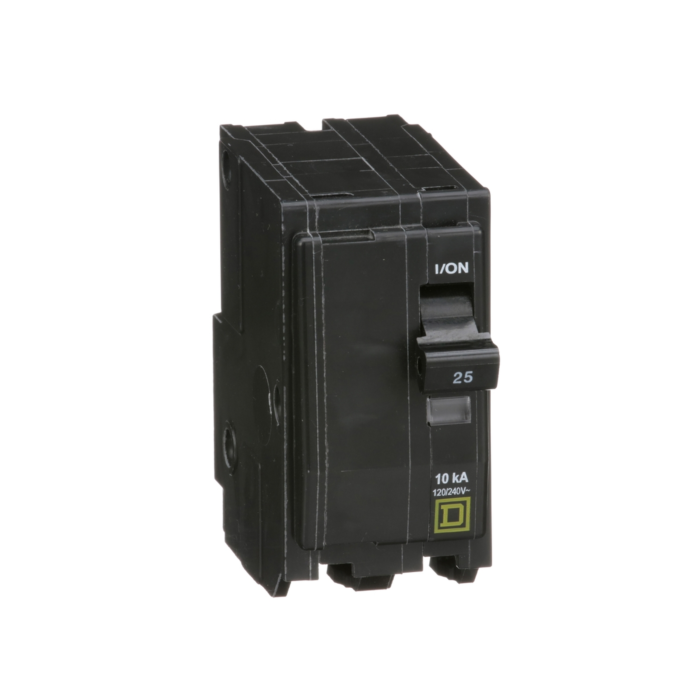

Mini circuit breaker, QO, 25A, 2 pole, 120/240VAC, 10kA, plug in, consumer pack
SKU: EQO225
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$40.99
Features
Specifications
Downloads
Mini circuit breaker, QO, 25A, 2 pole, 120/240VAC, 10kA, plug in, consumer pack
- WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
| Brand | Square D |
|---|---|
| UPC | 047569023828 |
| Store Location (Lititz, PA) | Aisle 08, Section D1 |
| Package Length (in) | 2.60" |
| Package Width (in) | 2.00" |
| Package Height (in) | 1.40" |
| Manufacturer Part Number | QO225CP |
| Product Certifications | UL Listed, CSA |
| Ue Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Line Rated Current | 25 A |
| Persona Type Ids | EU, EUA, SC |
| Persona Type Names | End User, Consumer, Electrician |
| Carbon Footprint Of The Distribution Phase A4 | 0.0309656255, 0 kg CO2 eq. |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0438737897 |
| Carbon Footprint Of The Installation Phase A5 | 0.0000599503, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 1 kg CO2 eq., 1.4023739396 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 17 kg CO2 eq., 17.3042434783 |
| Local Data Status | Publishable |
| Local Publishable Date | 2026-04-14 |
| Return Indicator | Y |
| Stocking Flag | N |
| Stock Policy | 2 |
| H And D Domain | Safety |
| H And D Subrange | RESI |
| H And D Enrichment Assignment | no |
| H And D Enrichment Function | MCB |
| H And D Enrichment Class 3 | Circuit Breakers |
| H And D Enrichment Class 4 | MCB UL 2P |
| Device Type | LV equipment - Low voltage circuit breaker |
| Serviceability | No |
| Traceability | No |
| Field Service Division | PPIBS |
| Average Life Duration | 15 year(s) |
| Legacy Weee Scope | In |
| Weee Product Category | 5 |
| Scope Perimeter | Outside of Europe |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur In Scope | Yes |
| Rohs Eur Status | Compliant |
| Rohs Eur Conformity Date | 2534 |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs In Scope | No |
| China Rohs Label | 1 |
| With Recycled Cardboard | No |
| Without Single Use Plastic | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 1 |
| Tier | 1 |
| Function Option Id | STANDARD |
| Function Option | Standard |
| Market Segmentation Id | RESIDENTIAL |
| Market Segmentation | Residential |
| Product Kit Identifier | N |
| Awg Gauge | AWG 14...AWG 8 copper or aluminium |
| Circuit Breaker Application | HACR rated |
| Circuit Breaker Type | standard |
| Electrical Connection | pressure plate |
| Energy Efficiency Optimized | False |
| Halogen Free Status | Halogen free product |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 2 |
| Poles Description | 2P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Range Of Product | QO |
| Returnability | Yes |
| Software Version | EIME v5.9.1 |
| Sustainable Packaging | No |
| Tightening Torque | 4-4 N.m |
| Total Lifecycle Carbon Footprint | 19 kg CO2 eq. |
| Type Of Packing | consumer packaging |
| Warranty In Months | 18 |
| Pep Code | ENVPEP2111016EN |
| Database Version | 2016-11 |
| Pep Verification Date | 2021-11-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Type Of Verification For The Pep | Independent internal review |
| Data Source | extrapolated product |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA |
| Functional Unit Quantity | 1 |
| Functional Unit Unit | unit |
| Product Weight In G2 | 240 |
| Reference Lifetime In Y2 | 20 |
| Energy Consumption On Product Lifetime In Kwh | 24.8784 |
| Energy Model Manufacturing A1 A3 2 | Energy model used: Mexico |
| Energy Model Installation A5 2 | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Energy Model Use B6 2 | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Energy Model End Of Life C1 C4 2 | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Offer Owner Code | 190788 |
| Height Nominal | 76 mm |
| Width Nominal | 38 mm |
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Take Back | No |
| Halogene Performance | Halogen free product |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Mercury Free | Yes |
| Carbon Footprint | 18.7815167833 |
| Ambient Air Temperature For Operation | 40 °C |
| Environmental Disclosure | ENVPEP2111016EN |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Packaging Made With Recycled Cardboard | No |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Country of Origin | Mexico |
| Depth | 74 mm |
