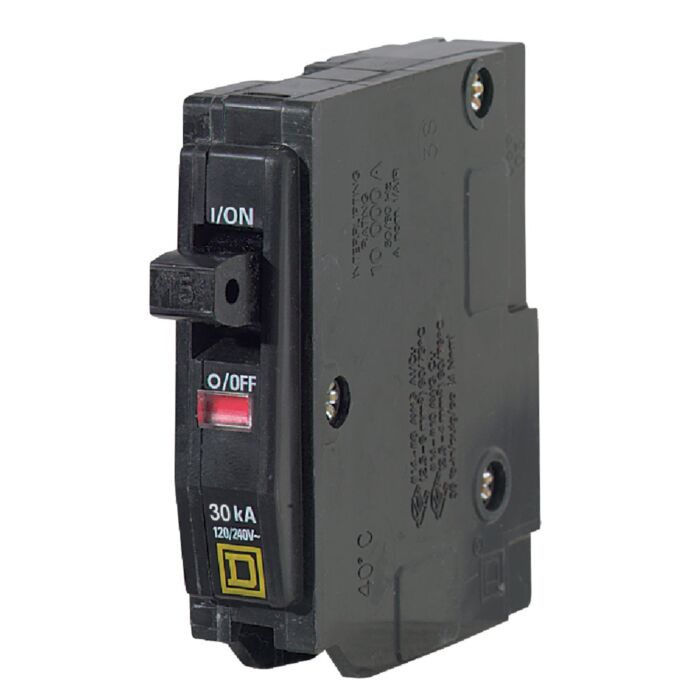

QO circuit breaker for use in QO load centers. Intended for overload and short-circuit protection of electrical systems. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed. Rated for 120 volt/240 volt and 10,000 AIR. Features the exclusive Visi-Trip indicator. When the circuit breaker trips, the handle snaps to a midpoint and a highly visible red indicator easily identifies the tripped breaker.
Brand | Square D |
---|---|
UPC | 785901400141 |
Store Location (Lititz, PA) | Aisle 08, Section D1 |
Package Length (in) | 2.60" |
Package Width (in) | 2.40" |
Package Height (in) | 0.80" |
Amperage | 30 |
Number of Poles | 1 |
Interruption Type | Standard Trip |
Voltage | 120/240 |
Frame Size | 1-Space |
Width (In.) | 0.75 |
Mount Type | Plug-In |
Wire Size | #14-8 AWG Al/(2) #14-10 AWG Cu |
Certification | ANSI/UL Listed |
