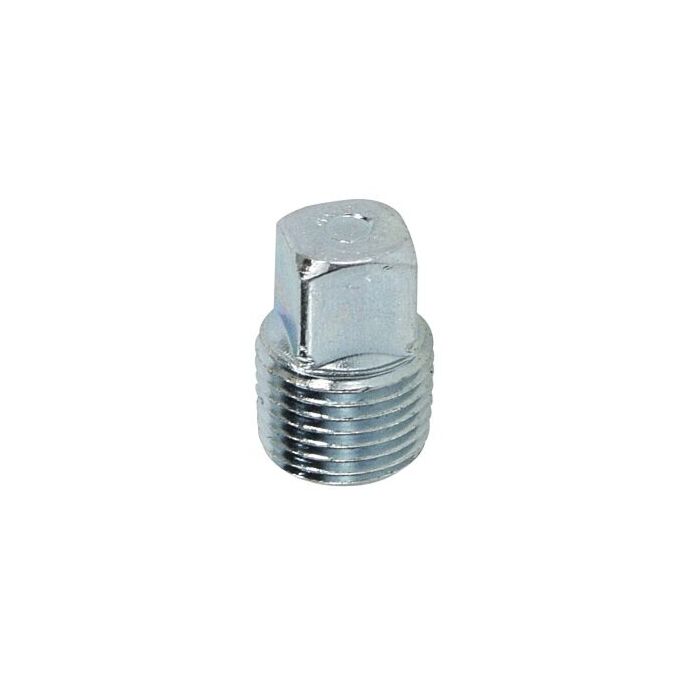

Square Head Pipe Plug
Square Head Pipe Plug 1 MPT
Square Head Pipe Plug 1/4 MPT
Square Head Pipe Plug 1/2 MPT
Square Head Pipe Plug 1/8 MPT
Square Head Pipe Plug 3/8 MPT
Square Head Pipe Plug 3/4 MPT
SKU: 5407-
SKU: 5407X16
SKU: 5407X04
SKU: 5407X08
SKU: 5407X02
SKU: 5407X06
SKU: 5407X12
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
As low as:
$1.30
As low as:
Features
Specifications
Square Head Pipe Plug 1 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
Square Head Pipe Plug 1 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
Square Head Pipe Plug 1/4 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
Square Head Pipe Plug 1/2 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
Square Head Pipe Plug 1/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
Square Head Pipe Plug 3/8 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
Square Head Pipe Plug 3/4 MPT
- RoHS compliant CR6 free (clear zinc trivalent) plating
- PCC world-class quality process
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.80" |
| Tube OD | 1 in |
| Thread Size 1 | 1 in-11.5 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 5500 psi |
| Length | 1.37 in |
| Head Type | Square |
| Head Size | 1-1/16 in |
| Thickness | 0.52 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 1.00" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.80" |
| Tube OD | 1 in |
| Thread Size 1 | 1 in-11.5 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 5500 psi |
| Length | 1.37 in |
| Head Type | Square |
| Head Size | 1-1/16 in |
| Thickness | 0.52 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.20" |
| Package Width (in) | 0.20" |
| Package Height (in) | 0.20" |
| Tube OD | 1/4 in |
| Thread Size 1 | 1/4 in-18 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Length | 0.83 in |
| Head Type | Square |
| Head Size | 3/8 in |
| Thickness | 0.29 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.88" |
| Package Width (in) | 0.88" |
| Package Height (in) | 1.00" |
| Tube OD | 1/2 in |
| Thread Size 1 | 1/2 in-14 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Length | 1.1 in |
| Head Type | Square |
| Head Size | 9/16 in |
| Thickness | 0.38 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.20" |
| Package Width (in) | 1.00" |
| Package Height (in) | 1.00" |
| Tube OD | 1/8 in |
| Thread Size 1 | 1/8 in-27 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Length | 0.61 in |
| Head Type | Square |
| Head Size | 9/32 in |
| Thickness | 0.24 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.20" |
| Package Width (in) | 0.20" |
| Package Height (in) | 0.20" |
| Tube OD | 3/8 in |
| Thread Size 1 | 3/8 in-18 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Length | 0.82 in |
| Head Type | Square |
| Head Size | 7/16 in |
| Thickness | 0.31 in |
| Store Location (Lititz, PA) | Aisle 06, Section X3 |
|---|---|
| Package Length (in) | 0.60" |
| Package Width (in) | 1.00" |
| Package Height (in) | 0.40" |
| Tube OD | 3/4 in |
| Thread Size 1 | 3/4 in-14 MNPT |
| Material | Carbon Steel |
| Pressure Rating | 6000 psi |
| Length | 1.15 in |
| Head Type | Square |
| Head Size | 5/8 in |
| Thickness | 0.44 in |
