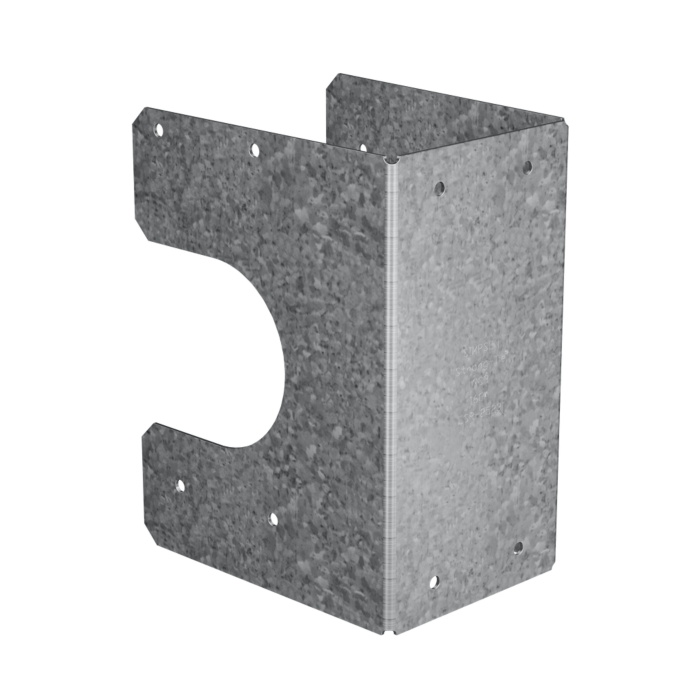

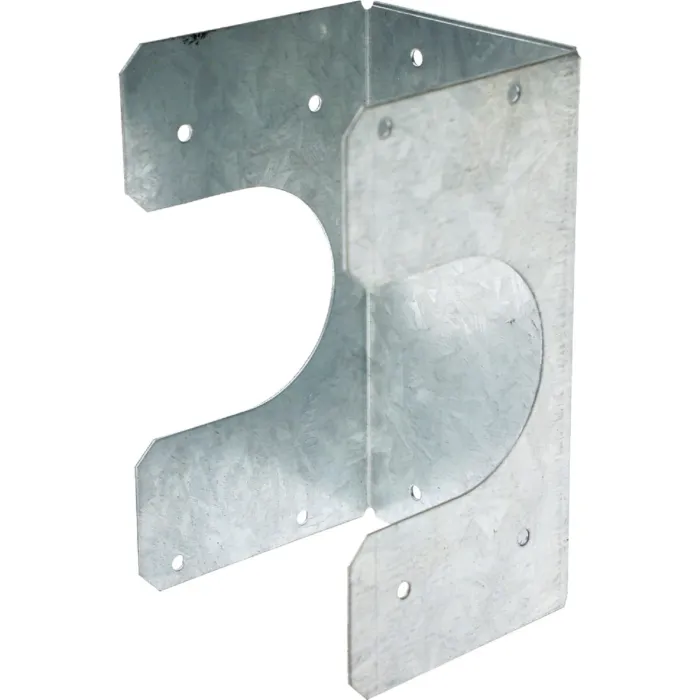

Simpson Strong-Tie SS3 SS 16-Gauge Galvanized Stud Shoe for Double 2x Stud
SKU: SS3
Need More?
Need more than what's currently in stock? We can help!
Contact us via our website chat or call us at 1-833-PAULBHD to inquire about availability and to place your order.
$16.99
Features
Specifications
The Simpson Strong-Tie® SS stud shoe is designed to reinforce notched, vertical studs in construction. This stud shoe is used to strengthen a wall stud that has a large hole drilled through it, typically to accommodate a plumbing waste line. The SS installs over the outside diameter of the pipe and is used as part of a total member replacement in structural applications.
- Installs over pipe up to 2-3/8 in. outside diameter
- Code listed for both building and plumbing codes
- Reinforces studs which have been drilled or notched during construction
- Designed to resist tension loads only
- Sized for double nominal 2x stud
- Made from 16-gauge steel
- Galvanized (G90) for corrosion resistance
| Brand | Simpson Strong-Tie |
|---|---|
| UPC | 044315804106 |
| Store Location (Lititz, PA) | Aisle 30, Section S1 |
| Package Length (in) | 6.00" |
| Package Width (in) | 3.13" |
| Package Height (in) | 3.25" |
| Manufacturer Part Number | SS3 |
| Country of Origin | United States |
| Depth | 3.489 in |
| Width | 3-1/16 in |
