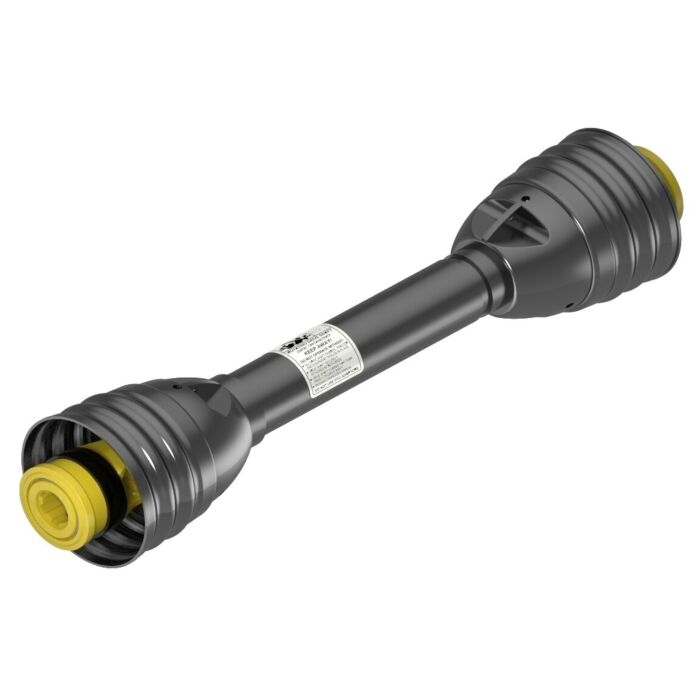

AB1 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and 1 3/8-6 spline spring-lok implement connection
SKU: 14006127ST | Location: Aisle 07, Section X5
$126.49
PICKUP
Your store: PaulB Lititz, PA |
DELIVERY
Ship to your home or business
Only 1 in stock! 1 in stock
Due to the low inventory, we recommend contacting the store to verify availability.
Features
Specifications
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
- Design adjustability (cut-to-length) capabilities.
- Interchangeability to fit with most competitor models.
- Tri-lobe shaft profiles available.
- Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
- Available with Standard bearing kits requiring regular lubrication.
- Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
- Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
- Cross & Bearing Kits: Standard kits require regular maintenance.
| Brand | Weasler |
|---|---|
| Store Location (Lititz, PA) | Aisle 07, Section X5 |
| Package Length (in) | 5.75" |
| Package Width (in) | 37.50" |
| Package Height (in) | 5.75" |
| Manufacturer Part Number | 14006127ST |
| Length | 34.086 inch |
| Height | 6 inch |
| Width | 6 inch |
| Weight | 11.4 lb |
| Series | AB1 |
| Outside Diameter | 6" |
| Bore 1 | 1.375" |
| Bore 1 Description | 1 3/8-6 SPLINE |
| Connection 1 Description | SPRING-LOK |
| Bore 2 | 1.375" |
| Bore 2 Description | 1 3/8-6 SPLINE |
| Connection 2 Description | SPRING-LOK |
| Compressed Length | 27" |
| Extended Length | 30" |
| Compressed Oal | 34.086" |
| Extended Oal | 37.086" |
| Bearing Diameter | 0.866" |
| Bearing Span | 2.122" |
| Application | FERTILIZER SPREADER |
| RPM | 540 rpm |
| Horsepower at 540 RPM | 15 hp |
| Horsepower at 1000 RPM | 23 hp |
