Weasler

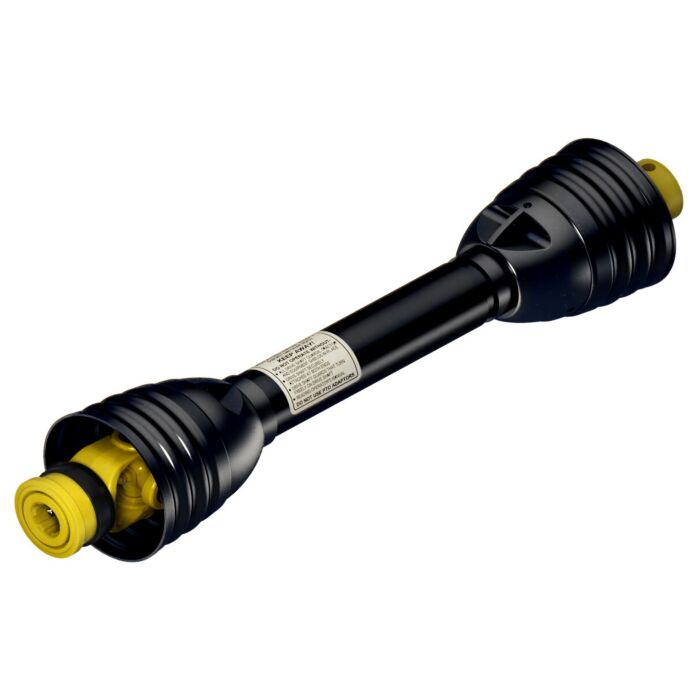

#4 Italian Style PTO Shaft, 540 RPM

SKU: 14006430ST
Lititz, PA
M-F 6:30am-8:30pm; Sat 6:30am-4:00pm
location-pin All Locations caret-down
Lititz Your Store Not stocked

Optional Accessories

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Weasler #4 & 2300 Series Extended Lube Cross & Bearing Kit
Weasler
#4 & 2300 Series Extended Lube Cross & Bearing Kit
$56.63
2018474
Weasler #4 & 2300 Series Standard Cross & Bearing Kit
Weasler
#4 & 2300 Series Standard Cross & Bearing Kit
$41.71
2008474
Features chevron-down chevron-up
Weasler PTO drive shafts are the premier solution in both the agricultural and lawn & turf industries. Engineered for continuous operation, they are built to withstand the daily rigors of farm use.
  • Tractor Yoke: 1-3/8" - 6 Spline- Spring Lock
  • Implement Yoke: 1-3/8" Round Bore, 1/2" Pin Hole
  • Compressed Length: 30"
  • Tubing Profile: Tri-Lobe
  • Series : 4
Specifications chevron-down chevron-up
Brand Weasler
Package Length (in) 31.00"
Package Width (in) 6.00"
Package Height (in) 6.00"
Manufacturer Part Number 14006430ST
Length 30 inch
Height 6 inch
Width 6 inch
Weight 21 lb
Series AB4
Outside Diameter 6"
Bore 1 1.375"
Bore 2 1.375"
Torque 25600 in-lb
Pin Hole Diameter 0.51"
Pin Hole Location 0.54
Bearing Diameter 1.063"
Bearing Span 2.933"
RPM 540 rpm
Horsepower at 540 RPM 36 hp
Horsepower at 1000 RPM 56 hp
Tractor Yoke 1-3/8" - 6 Spline- Spring Lock
Implement Yoke 1-3/8" Round Bore, 1/2" Pin Hole
Extended Overall Length 40.23"
Tubing Profile Tri-Lobe
