Weasler

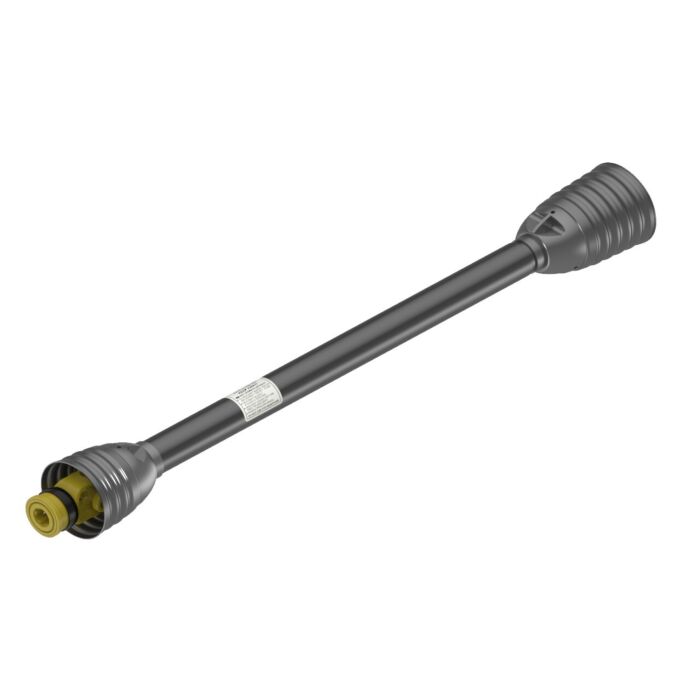

AB4 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and round pin implement connection

SKU: 14006453ST
check
PICKUP
Your store: PaulB Lititz, PA |
xmark
DELIVERY
Not available for parcel delivery

Not stocked

This product must be picked up in-store.
Features
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
  • Design adjustability (cut-to-length) capabilities.
  • Interchangeability to fit with most competitor models.
  • Tri-lobe shaft profiles available.
  • Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
  • Available with Standard bearing kits requiring regular lubrication.
  • Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
  • Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
  • Cross & Bearing Kits: Standard kits require regular maintenance.
Specifications
Brand Weasler
Manufacturer Part Number 14006453ST
Length 53.62 inch
Height 6 inch
Width 6 inch
Weight 29 lb
Series AB4
Outside Diameter 6"
Bore 1 1.375"
Bore 1 Description 1 3/8-6 SPLINE
Connection 1 Description SPRING-LOK
Bore 2 1.25"
Bore 2 Description ROUND
Connection 2 Description PIN
Compressed Length 45.67"
Extended Length 71.65"
Compressed Oal 53.62"
Extended Oal 79.6"
Pin Hole Diameter 0.51"
Pin Hole Location 0.54
Bearing Diameter 1.063"
Bearing Span 2.933"
Application POST HOLE DIGGER
RPM 540 rpm
Horsepower at 540 RPM 36 hp
Horsepower at 1000 RPM 56 hp
