Weasler

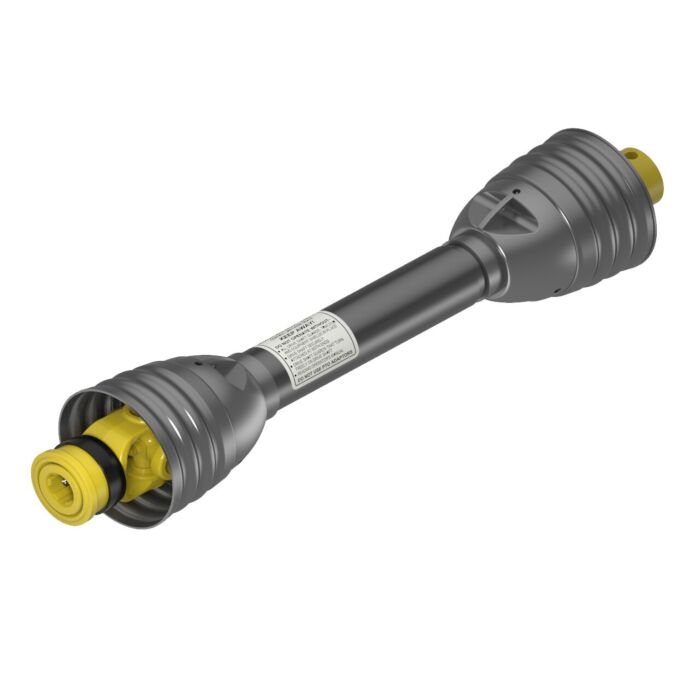

AB4 series profile PTO drive shaft with a 1 3/8-6 spline spring-lok tractor connection and round pin implement connection

SKU: 14006437ST
check
PICKUP
Your store: PaulB Lititz, PA |
xmark
DELIVERY
Not available for parcel delivery

Not stocked

This product must be picked up in-store.
Features
Weasler Standard PTO drive shafts are available in the agriculture and lawn & turf industries . Weasler PTO driveshafts are complete assemblies from tractor to implement. They are designed for intermittent or light-duty all purpose use and meet the requirements of small farms and consumers. The metric product line offering of PTO drive shafts meets the power transmission needs of many applications.
  • Design adjustability (cut-to-length) capabilities.
  • Interchangeability to fit with most competitor models.
  • Tri-lobe shaft profiles available.
  • Standard guard construction without Easy Lock allows assembly or removal with a screwdriver.
  • Available with Standard bearing kits requiring regular lubrication.
  • Guard System: Provides full coverage at maximum angles, Black coloring that is durable against ultraviolet light and ozone, meets all applicable safety standards. Does not include our Easy Lock system.
  • Yokes: Interchangeable with standard yokes available in the market, meet all appicable safety standards.
  • Cross & Bearing Kits: Standard kits require regular maintenance.
Specifications
Brand Weasler
Manufacturer Part Number 14006437ST
Length 46.39 inch
Height 6 inch
Width 6 inch
Weight 23.28 lb
Series AB4
Outside Diameter 6"
Bore 1 1.375"
Bore 1 Description 1 3/8-6 SPLINE
Connection 1 Description SPRING-LOK
Bore 2 1.375"
Bore 2 Description ROUND
Connection 2 Description PIN
Compressed Length 37"
Extended Length 43.67"
Compressed Oal 46.39"
Extended Oal 53.06"
Torque 25600 in-lb
Pin Hole Diameter 0.51"
Pin Hole Location 0.54
Bearing Diameter 1.063"
Bearing Span 2.933"
RPM 540 rpm
Horsepower at 540 RPM 36 hp
Horsepower at 1000 RPM 56 hp
